Fukuda EK-112R Cross Line

Fukuda EK-112R (Red Beam) Cross Line Laser

Self Levelling Cross Line Laser Level (Palm Type) & Magnetic Bracket (Indoor Only)

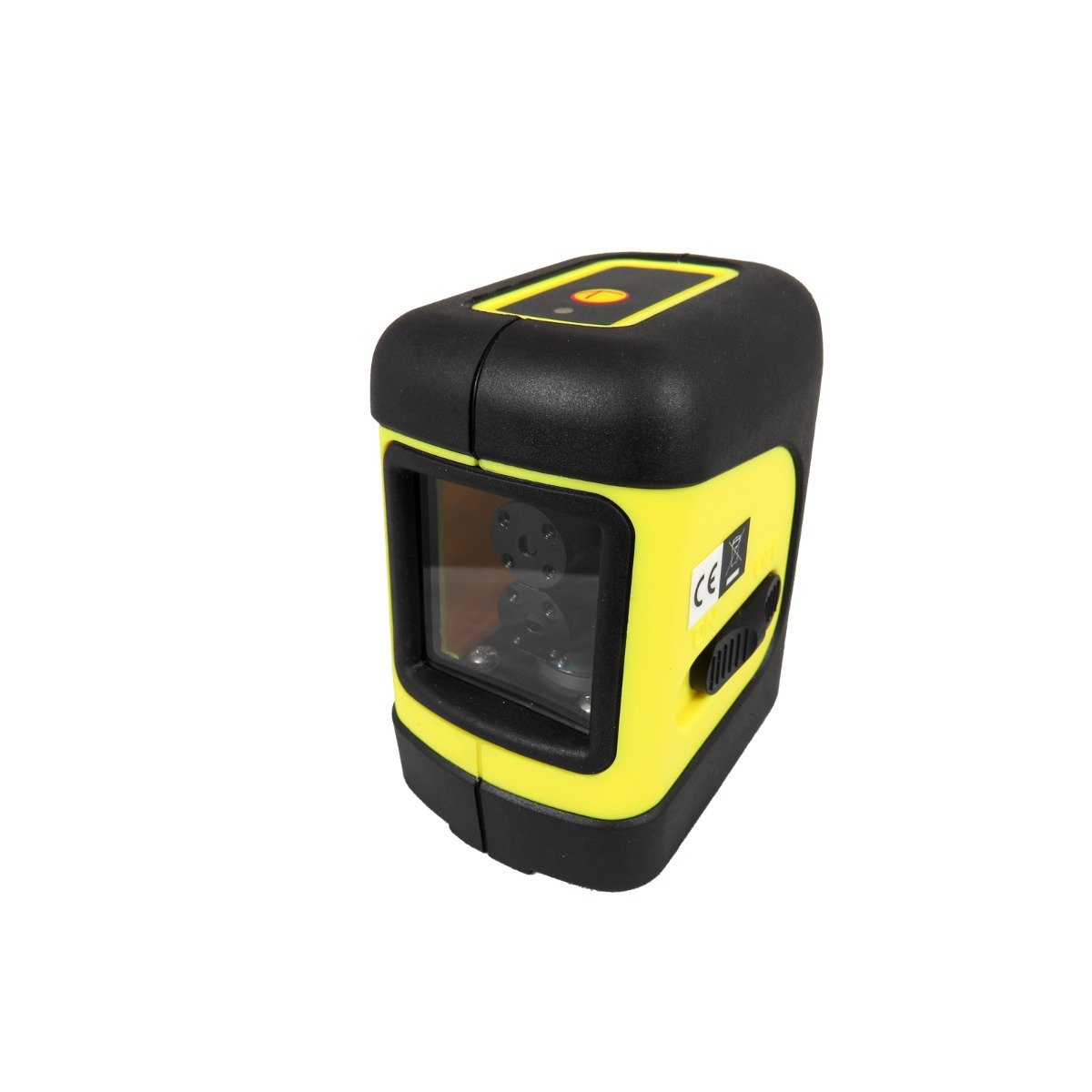

Fukuda Lasers have a new addition to their range, the EK-112R Cross Line Laser.

It self levels quickly & accurately; giving a fine, red laser cross - ideal for both horizontal & vertical setting-out. Both beams can be switched On & Off independently.

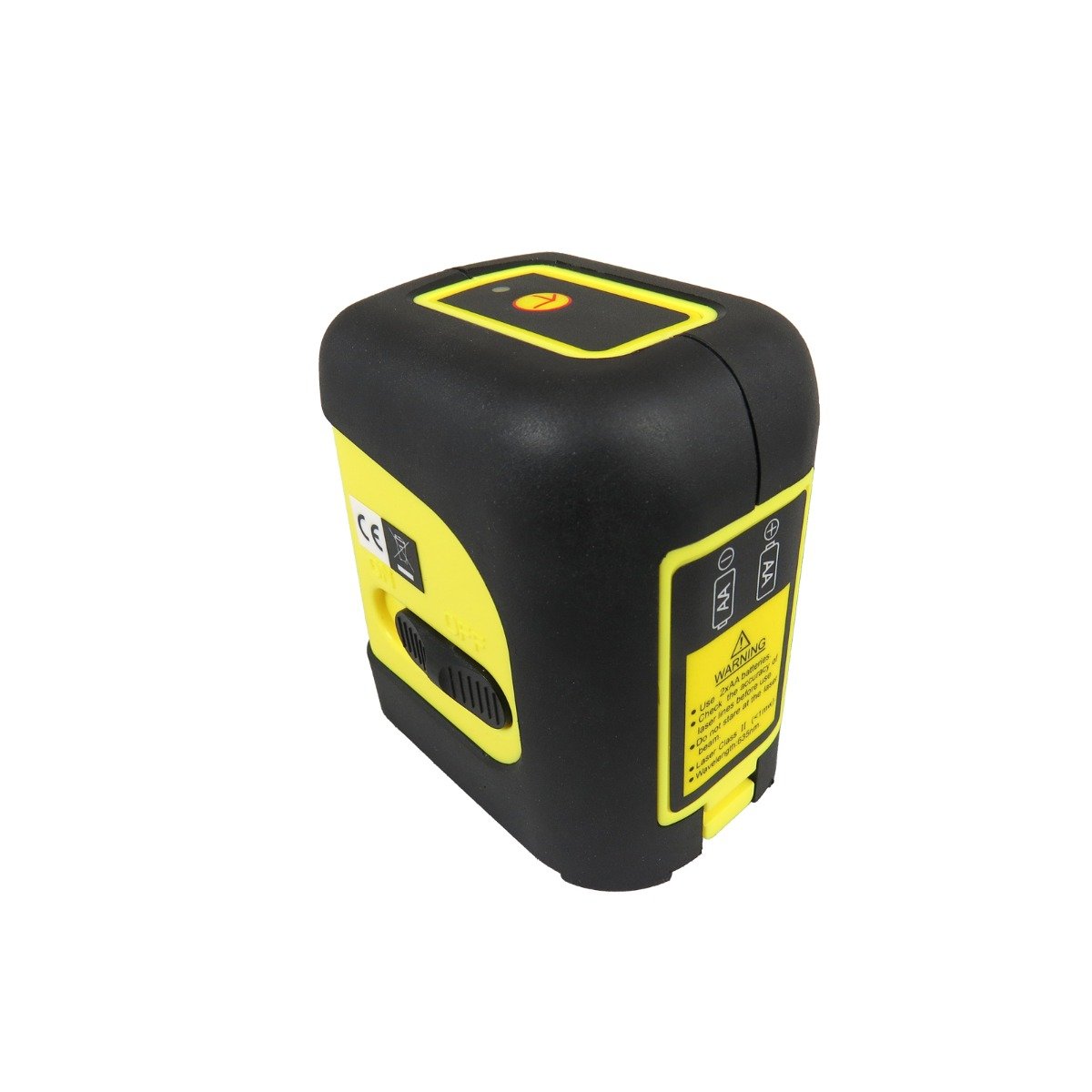

A transit latch protects the mechanism (to avoid transportation damage) and the case is surrounded by a black rubber cover for worksite protection.

The EK-112R comes with a very handy Multi-function Magnetic "L" bracket. It acts as an all-in-one Wall hanging bracket & 5/8" tripod Adapter.

So the user has the choice of mounting the laser on tripods or Floor to Ceiling Poles with either 1/4" or 5/8" threads. (Please see our Accessories section.)

All in all, its a very versatile Laser Cross kit, primarily for the Interior Trades.

Features

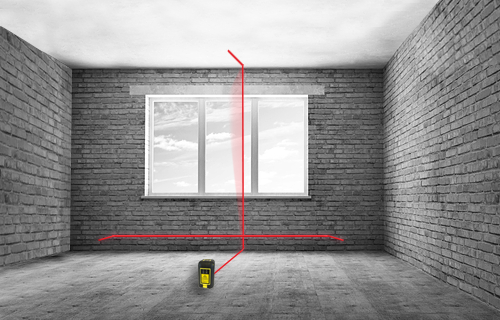

The EK-112R laser level is a dual output, self-levelling instrument which generates bright visible red Laser Lines in the form of a Cross.

Both laser beams can be switched ON or Off either independently, or used together.

A simple 3-second press of the power button (transit latch locked) puts the laser into MANUAL mode ie. to set inclines etc.

No bubble levels are needed as it aligns via a totally automatic, damped gravity system.

A transit latch mounted in the base can be used to physically lock the mechanism (when not in use) & this isolates the power too.

If the instrument detects any inaccuracy, it alarms by flashing the laser beams On & Off, once every second. So no false levels are given.

Specification

Accuracy: +/-2mm @ 10 metres

Working range: approx. 10m depending on ambient light.

Mounting thread: 1/4"

Laser diode: 635nm (1mW)

Laser class: 2

Self levelling range: +/-4 degrees to true horizontal.

Self levelling time: max. 5 secs.

Power supply: 2pc x AA alkaline batteries.

Battery life: at 20 deg C, 2 beams around 8hrs

Operating temperature: -10 to +50 deg C

Unit dimensions: 82 x 57 x 90mm

Weights: Instrument with batteries, 360g.

Weights: Complete kit with bracket & carry case etc, 590g.

Example usage

Ideal for wall Tiling / Stud wall & partitioning / Kitchen & bedroom unit installations / all Shop Fitting & refurbishment work / Electrical conduit & lighting / Plumbing & Pipework / Shelving systems & many others.

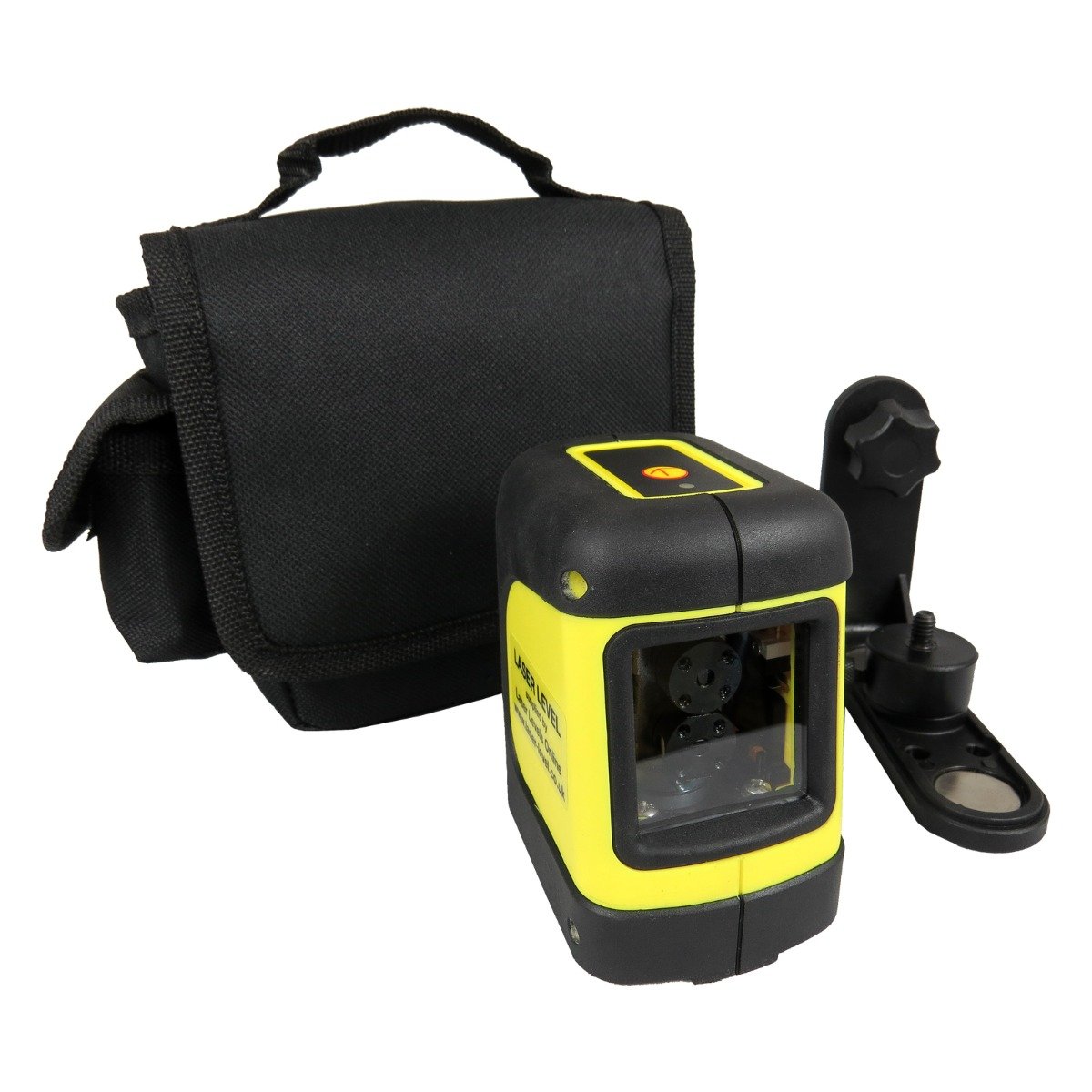

Kit comprises of

Fukuda EK-112R Instrument (checked and pre-calibrated)

2 x AA Alkaline Batteries

Magnetic "L" Shaped Mounting Bracket

5/8"-1/4" Adapter

Quick Start Guide

Soft Canvas Carry Case

Warranty: 1 Year
