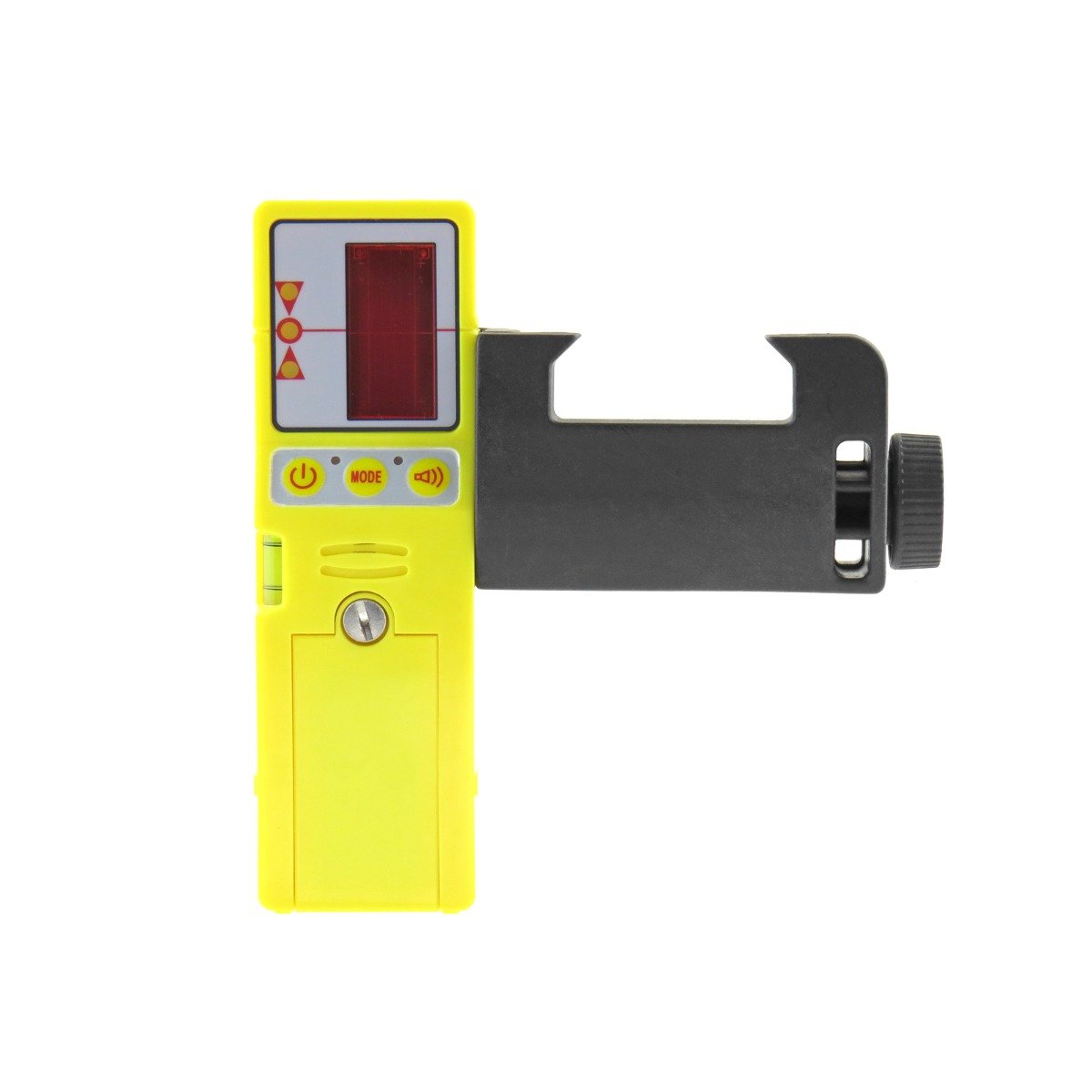

Fukuda FD-9R Line Detector
Only 6 item(s) are currently left in stock
Couldn't load pickup availability
Product Overview
Fukuda FD-9R Line Detector
Features
Working range 50m
For use with Fukuda RED beam "pulse output" lasers
Audible indication of line level
Visual LED indication of line level
Mounting clamp bracket included for use with staffs/rods
Waterproof to IP54
Warranty: 1 Year
Specification
Sensitivity setting: fine 1.5mm / coarse 2.5mm
Frequency: 10kHz
Laser reception window: 20x40mm
Auto power off: 10 minutes
Power voltage: 9V dc
Power supply: 1 x 9V alkaline battery
Continuous operating time: 15 hrs
Waterproof: Yes to IP54
Operating temperature range: -10 to +40 deg C
Storage temperature range: -10 to +50 deg C
Instrument size: 165 x 51 x 27 (mm)
Weight: 160 grams with battery.
Compatibility
Please check compatibility below:
| Model | Compatible |
| Fukuda EK-226P | Yes |
| Fukuda FDG-231 | Yes |
| Fukuda FDG-232R | Yes |
| Any other Brand or Model | No |
Comprises of
Fukuda FD-9R Detector
9V Alkaline Battery
Staff Mounting Bracket
Warranty: 1 Year
