Orient KS-3

Name: Orient KS-3
Brand: Orient Surveying
SKU: KS-3/CG2
Price: 95.94 GBP
Availability: InStock

× Our promise to you: Buy from Laser Levels Online, safe in the knowledge that you have paid the best price and that each and every product will have been expertly checked by specialists who are able to provide you with free help and support by phone.

£95.94

All Prices Include VAT & Delivery (if applicable)

Only 5 product(s) are currently left in stock

SKU: KS-3/CG2
Availability: In Stock

Returns 90 days return. See details

Ways to Pay

Product Overview

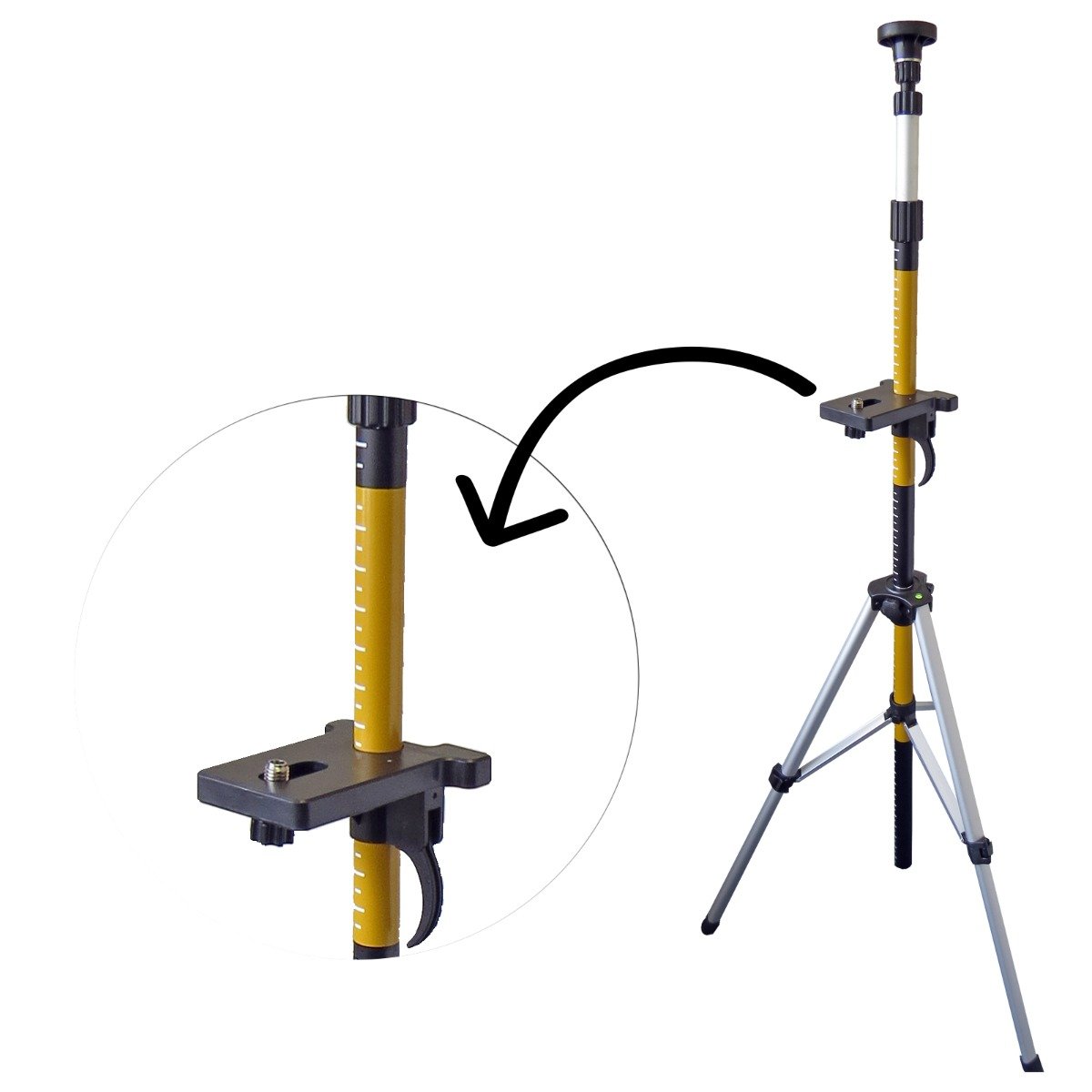

Orient KS-3

Floor To Ceiling Pole System with tripod

Floor-to-ceiling support pole kit to mount our Laser cross line and smaller Rotary instruments, at variable room heights.

Useful for unusually high ceilings (eg Barn conversions) & sloping ceilings etc.

An included tripod extends its range for free-standing use, both indoors & outdoors.

Features

Overcomes the height restriction of tripods.

Can fix between floor & ceiling OR use free-standing support tripod (included)

Rigid 30mm diameter aluminium poles

5+1pc aluminium sections screw together to build-up the required height.

Quick-release Support Platform with floating 5/8" threaded fixing.

An Optional 1/4" adapter is available.

For both indoor & outdoor use.

Specification

MAX Pole height: 3.6m

Platform weight limit up to 4kg

Comprises of

5 x 610mm Pole Sections

1 x Extendable Spring Clamp Pole

2 x End Pads

1 x Platform With 5/8" Thread & Toggle Clamp

1 x Freestanding Support Tripod

1 x Black Carry Bag

Warranty: 1 Year

Payment & Delivery

90-Days Return Policy

Pairs well with

Great Product

The 5 poles screw together easily and has a great light and firm tripod with a bubble to level it.
The poles have 2 rubber feet pads 1 at the base of the pole and 1 on top which also has a spring telescope extension end for firm ceiling hold, and you can double check for vertical pole levels.
And with the adjustable laser table and adaptor for my rotary laser level, it worked so great that i didn't realise how bad the ceiling was ie not level.
I would like if there was a half a pole extension for when a whole pole was too long.
Otherwise the kit has that very professional look to it.

great bit of kit

This is a very light and well made tripod. The 5 poles screw together easily and itis very study when used with just 1 pole or all 5. My only issue would be with the storage bag, as it seems a bit delicate and it looks like it would rip easily. Apart from that its a great tripod and well worth the money.

Oozes quality

Pillar support made up of five sections which screw together, the first being telescopic with a sprung foot for a firm hold. The sections are thick enough to reduce wobble quickly and the large diameter screws which connect each section give the impression of strength and quality. Should be long enough for all but the most unusual room heights. Nice bit of kit. Screwing the pole together reminded me I haven't played snooker for too long!

Neat, quality bit of kit

Pillar support for my existing "GeoFennel FL40 Pocket II Laser Cross". Comes in neat bag. Up to five 2' aluminum sections screw together with telescopic end section containing a sprung foot. Also has a screw in nonslip ceiling foot. Inch and foot makings on all sections, although markings are not really required they look quite beautiful. Delighted with useful, well designed and made bit of kit that doesn't use up floor space like a tripod.
(Fitted furniture designer/maker)
