Topcon RL-H5A mm/inch Rotary Base Unit
Multi-buy Discount
Buy 2 and save 2% | Buy 3 and save 3%
Only 40 product(s) are currently left in stock
We're here to provide guidance over the phone, but all orders must be placed online. Add to Basket and Checkout in the normal way.
Couldn't load pickup availability
Product Overview
Available for Purchase or Hire
Topcon RL-H5A Rotary Laser Level Kit available for purchase or on a weekly hire basis from only £75.98 inc. VAT. If you would like to learn more about hiring this kit please, Click Here.
Also available as an Outlet version
Why not Click Here to view our Laser Levels Online | Outlet. Outlet products are typically cheaper than normal retail versions because some items may have small cosmetic flaws that don’t affect functionality but keep them from being sold at full price.
Product Overview

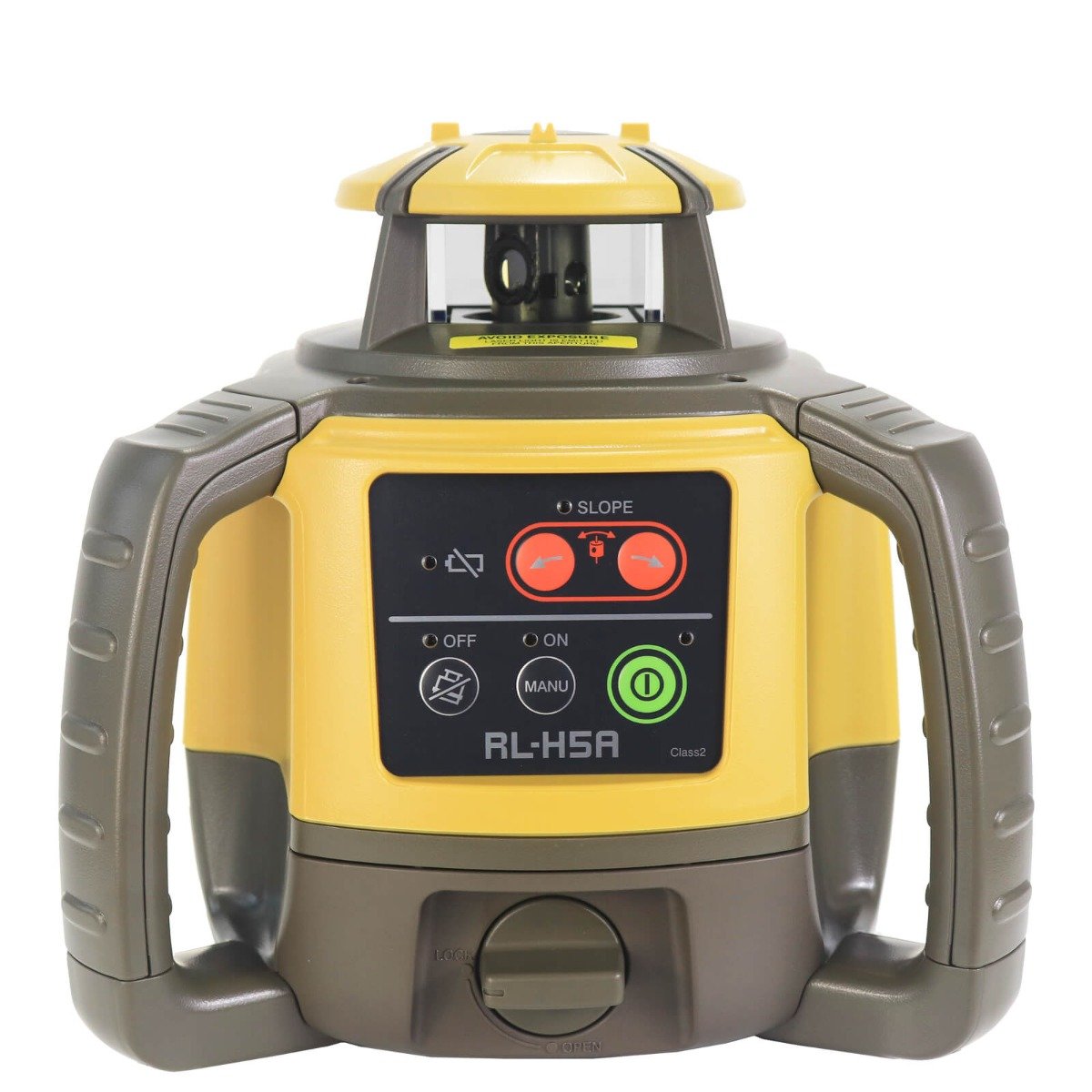

Topcon RL-H5A Rotating Laser Level Kit is the next generation of self-levelling construction lasers. With a high accuracy and a long range, the RL-H5A is simple to use for checking elevations. Proven reliability on any job site with long-range consistency and ease of use.
With electronic self-levelling, you press the power button and go right to work in seconds. If the RL-H5A gets disturbed on the job, it relevels itself automatically. The self-levelling motors are accurate to ±1.5 mm at 30m.
The instrument has the power and range to cover an 800m diameter job site.
The RL-H5A gives you the option of up to 60 hours of continuous usage with the rechargeable battery pack or 100 hours with 4x type D alkaline batteries.
With an IP66 rating, the RL-H5A is “job site tough” and can withstand dust, a sudden shower and even torrential rainfall.
Included is a Topcon LS-110D Rotary Laser Detector with digital readout (mm/inch). It shows the mm/inch scale on the display to see the elevation or drop e.g. 23mm - 18mm - 5mm - 2mm - LEVEL. Staff mounting bracket, Holder 110 is also included.
Laser specification
Please note this Base Unit does not include a Tripod or a Staff.
If you require a Laser of the same type, but as a full kit please look at the Topcon RL-H5A Mm/Inch Rotary Kit.
Specification
RL-H5A Laser Specifications:
Laser Source: Laser diode (Visible, 635 nm) IEC Class 2
Laser Accuracy: ±1.5 mm at 30m, (±1/16 in at 100 ft)
Laser Operating Range: 800m diameter (with detector)
Self-leveling Range: ±5 degrees
Compensation Method: Electronic self-leveling
Single Axis Manual Slope Mode: Yes
Power Source: Ni-MH battery pack BT-79Q (7000mAh) or 4xD size dry cell batteries (alkaline)
Battery Life: Rechargeable 60 hours, or Alkaline 100 hours
Charging Time: Approx 13 hours (Using with AD-17C/E)
Rotation Speed: 600rpm
Tripod Mount (Horizontal and Vertical): 5/8” x 11
Operating Temperature: -20 to 50°C (-4 to 122°F)
Storage Temperature: -30 to 60°C (-22 to 140°F)
Water and Dust Protection: Yes, IP66 (IEC60529: 2001)
Size: 172 (L) x 211 (W) x 205 (H) mm
Weight: 2.5 kg (5.5 lbs) (with BT-79Q) or 2.3 kg (5.1 lbs) (with dry cell batteries)
Warranty: 5 Years
Detector features

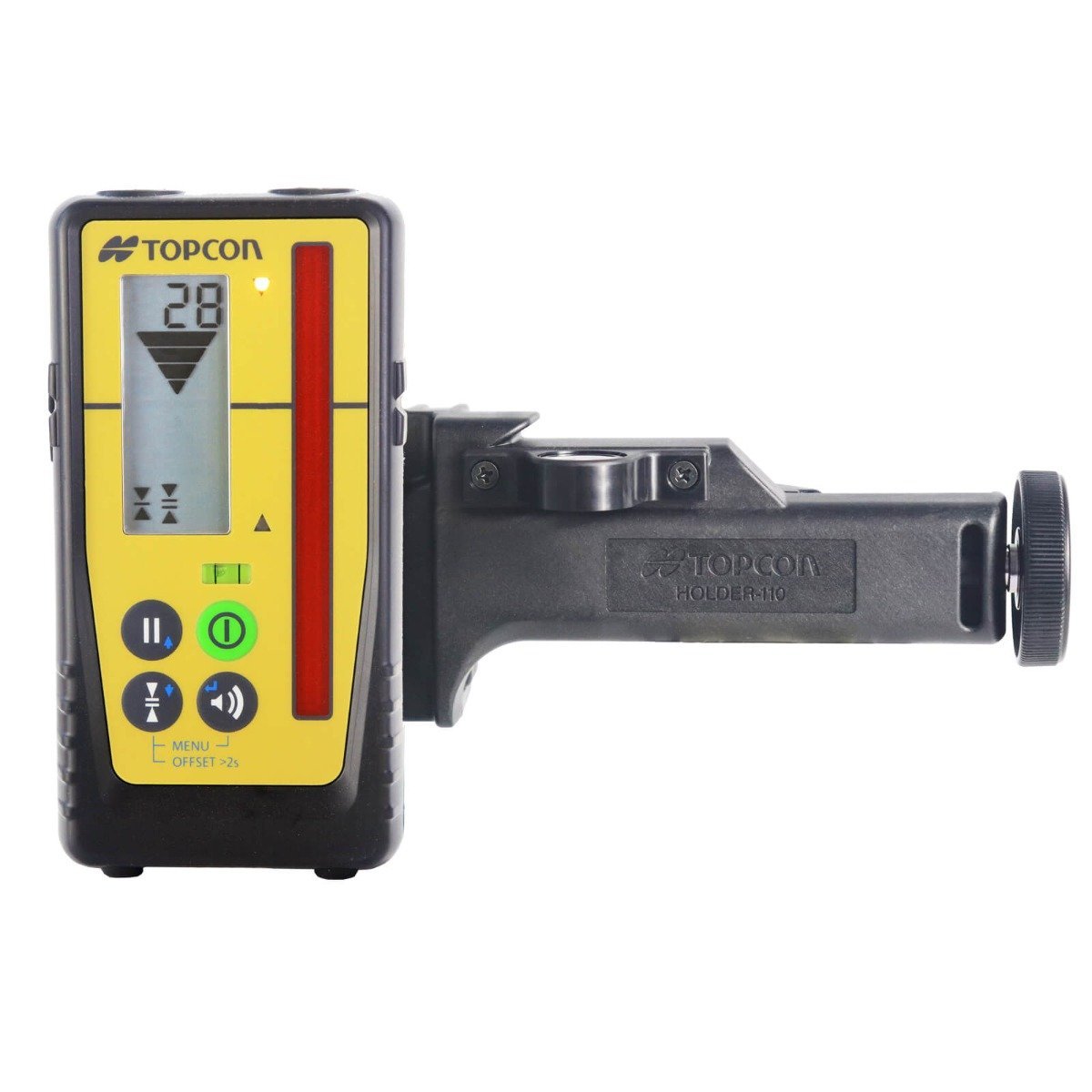

Kit includes LS-110D “mm/inch” Detector & Bracket:
Versatile and designed for maximum User convenience, the LS-110D laser detector features a digital read-out to confidently deliver elevation and vertical alignment control on demand.
It features an extra-wide beam capture sensor that also rejects annoying interference from strobe light exposures. The large and bright LCD displays (both front and rear) feature 9-channels of grade information and digitally show the distance to on-grade. By pressing the Hold button, the display is locked so the user can conveniently read the results. For added versatility, three coloured LED’s and a strong magnet mount are embedded for vertical operation, ideal for steel erection or operator grade checking while excavating.
To assist in monitoring the Topcon rotating laser, alert icons appear on the LCD if the instrument is disturbed (HI alert) or when the laser battery is low.
The LS-110D is compact and lightweight. At 135 x 69 x 25mm and approx. 200g with battery; it won’t slow your team down. One standard type AA alkaline battery powers it for up to 65 hours, so you’re not stopping to find & swap batteries mid-shift.
Specification:
Laser beam colour detected – Red & Green
Working Range (diameter): 800m
Vertical Detecting Range: 90mm; (-30mm to +60mm)
LCD Digital Readout Range: 80mm; (-25mm to +55mm)
Strobe Light Suppression: Yes
Unit: mm / cm / inch / fractional inch
On-Grade Resolution:
Ultra Fine ±0.5mm (±0.02 in.)
Super Fine ±1.0mm (±0.05 in.)
Fine ±2.0mm (±0.10 in.)
Medium ±5.0mm (±0.20 in.)
Coarse ±10.0mm (±0.50 in.)
LCD Grade Indicators: 9 Channels
LED Grade Indicators: Orange, Green, Red (On/Off selectable)
Display LCD on both sides
Buzzer: Loud / Low / Off selectable
Operating Time: Up to 65 hours with one alkaline “AA” battery
Battery Level Indicator: LCD Icon
Auto Shut-off approx: 30 minutes
Dust/Waterproof Rating: IP67 (IEC 60529)
Dimensions: 135 x 69 x 25mm
Weight: 200g with fitted battery (380g with bracket)
LS-110D Detector includes:
Topcon LS-110D Detector
1 x type “AA” Alkaline Battery

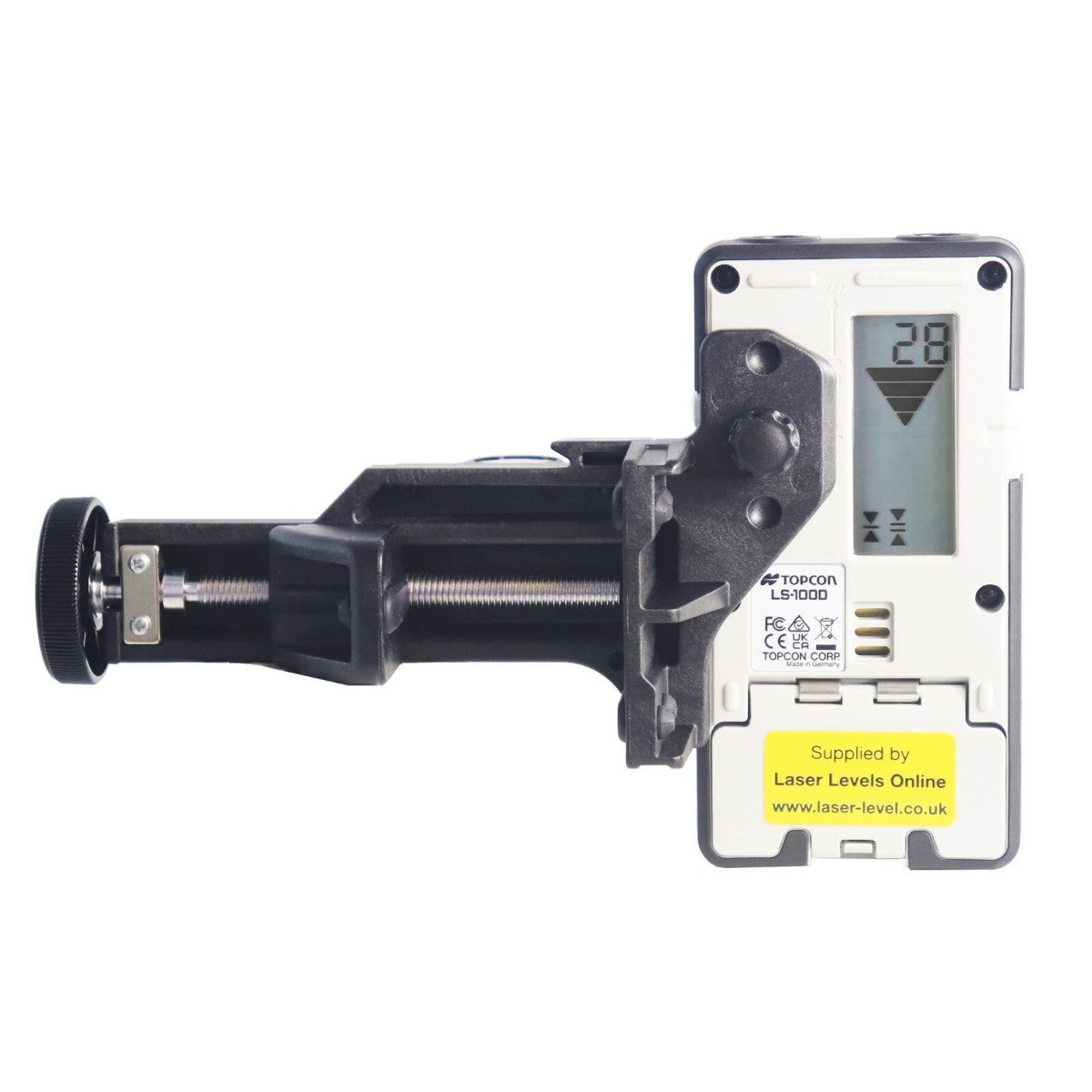

Staff Mounting Bracket (Topcon Holder 110)
Instruction & Safety Manual
Warranty: 1 year
Technical specification
Accuracy:
+/- 1.5mm @ 30 metres, max. operating diameter 800m (400m either side of the instrument).
An accuracy of +/- 1.5mm @ 30 metres is equivalent to 0.05 mm/m and to put that into perspective, the best premium German spirit level has an accuracy of +/- 0.5 mm/m or +/- 15mm @ 30 metres.
Single Grade facility accessed via laser’s keypad:
Single grading in X axis only up to +/-10% (1 in 10)
The X axis can be set to give a maximum fall of up to 1m at 10m distance away. (ie. 1 in 10 & +/-10% grade)
The User can only set grades from the laser's keypad. There is no option to use a remote control.
To set grades greater than 10%, use an optional Manual Grade Adapter.
Example usage
Checking/setting elevations, concrete forms, footings, and foundations for small- and medium-sized job.
Basic slope work such as driveways and ramps
Excavations, digging footings and septic tanks
Do you need ShockWatch® adding to your Laser?
The optional ShockWatch impact indicator clip is a tamperproof, mechanically activated device that turns bright red to indicate mishandling or after the Laser has received an excessive impact. Designed to mount directly onto the Laser Level, the clip is compact and economical and provides 360° impact detection alerting the user to check the Lasers Calibration before use. If this option is selected, our Technicians will fit your Laser with a Shockwatch prior to dispatch, giving you and your users extra piece of mind on the job site.
For further details of ShockWatch®, please Click Here.
Need to mount a Detector on Plant equipment?
The Topcon RL-H5A can be used for machine control by using a magnetic CR700 Detector, which can be purchased as an "upgrade" or as an optional extra.
For further details of the Spectra CR700, please Click Here.

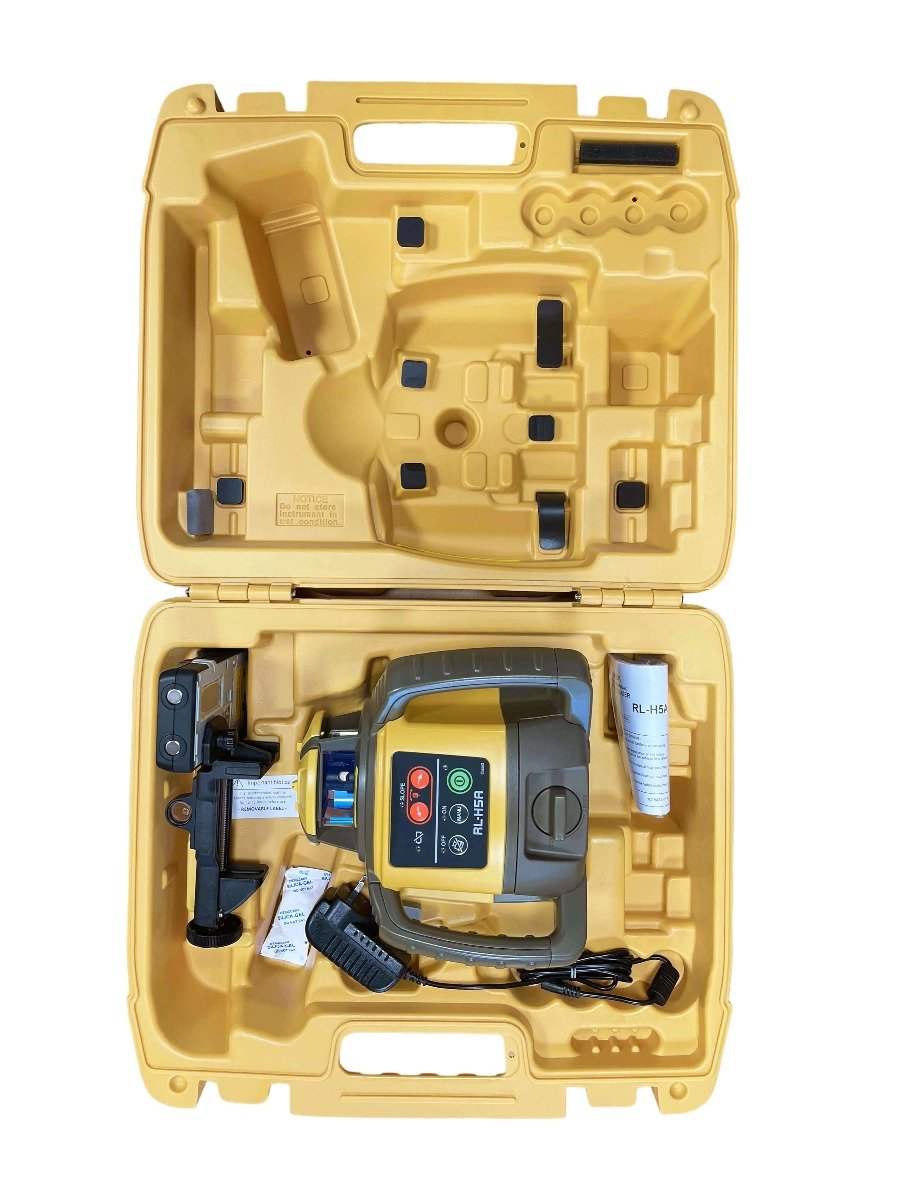

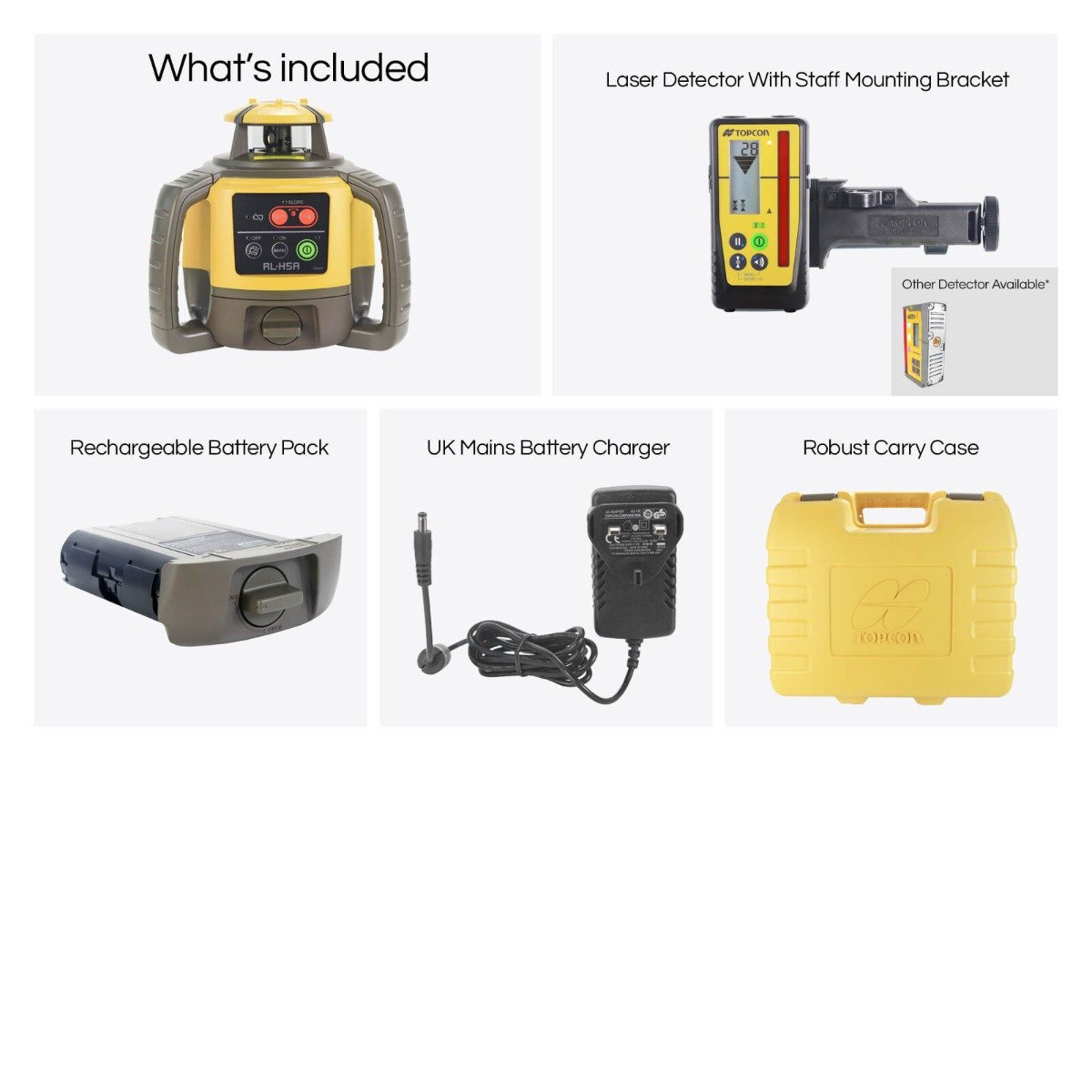

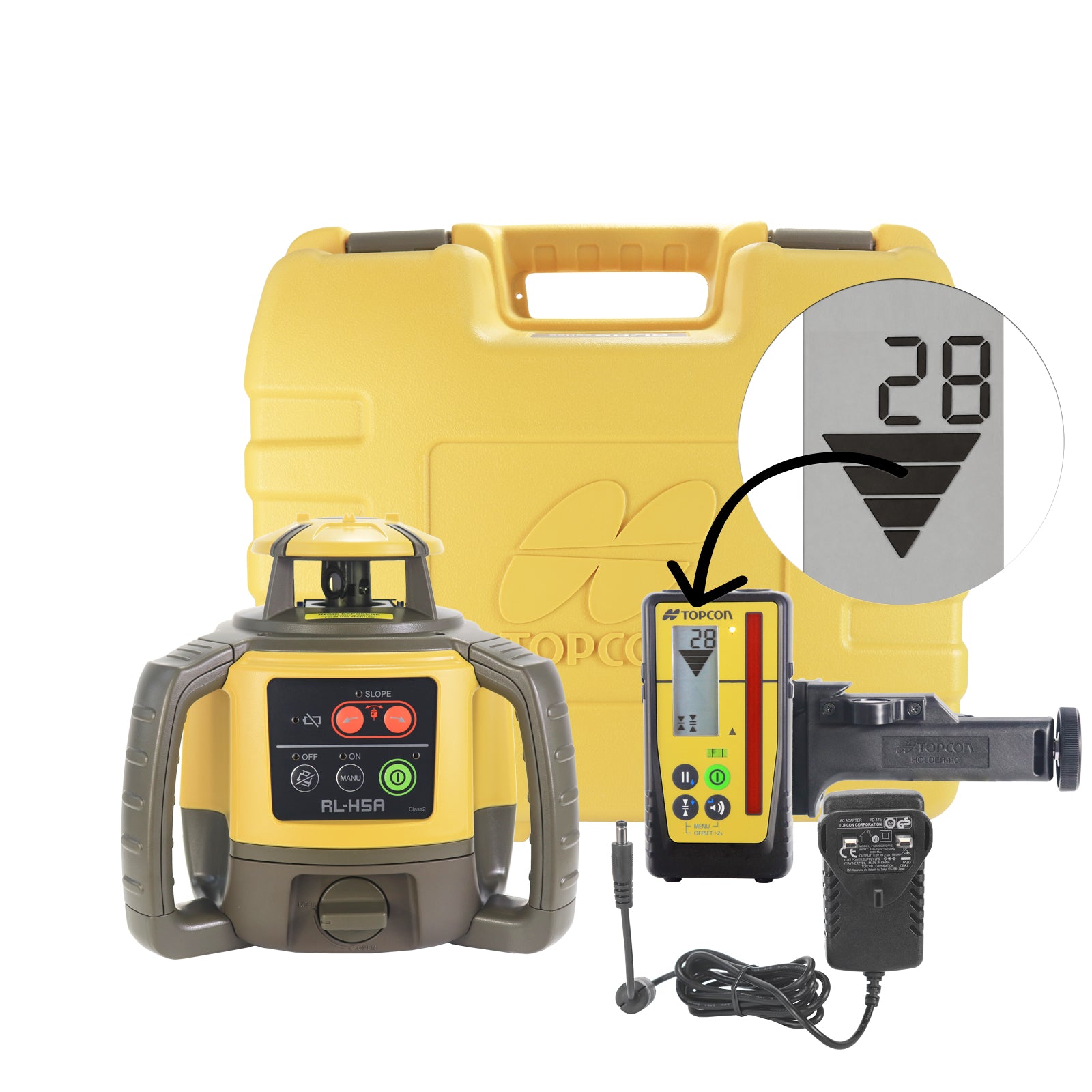

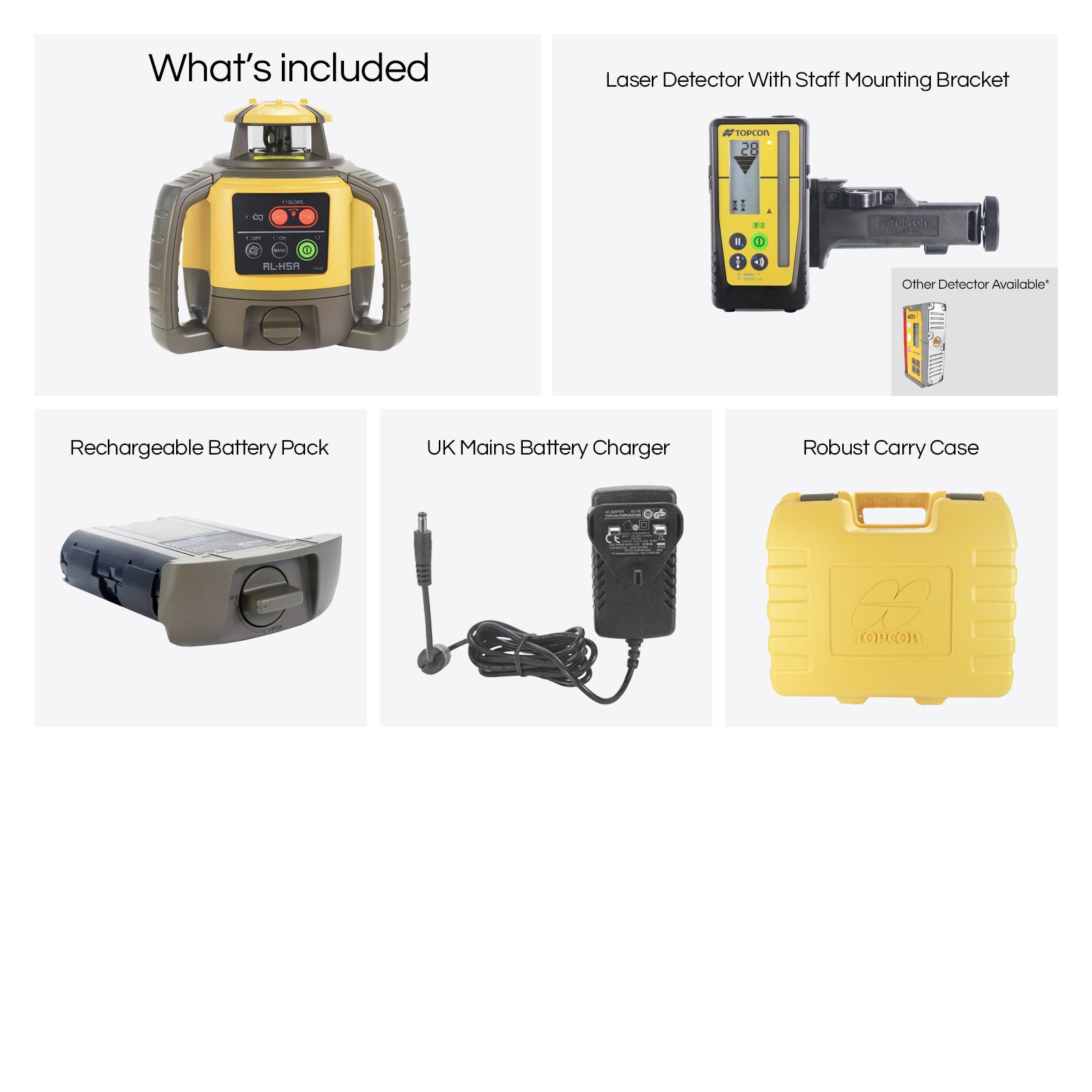

Kit comprises of
Topcon RL-H5A Rotary Laser Level (checked and pre-calibrated)
Topcon LS-110D Laser Detector With Staff Mounting Bracket (Holder 110) & Batteries
Option to upgrade to CR700 Magnetic Laser Detector

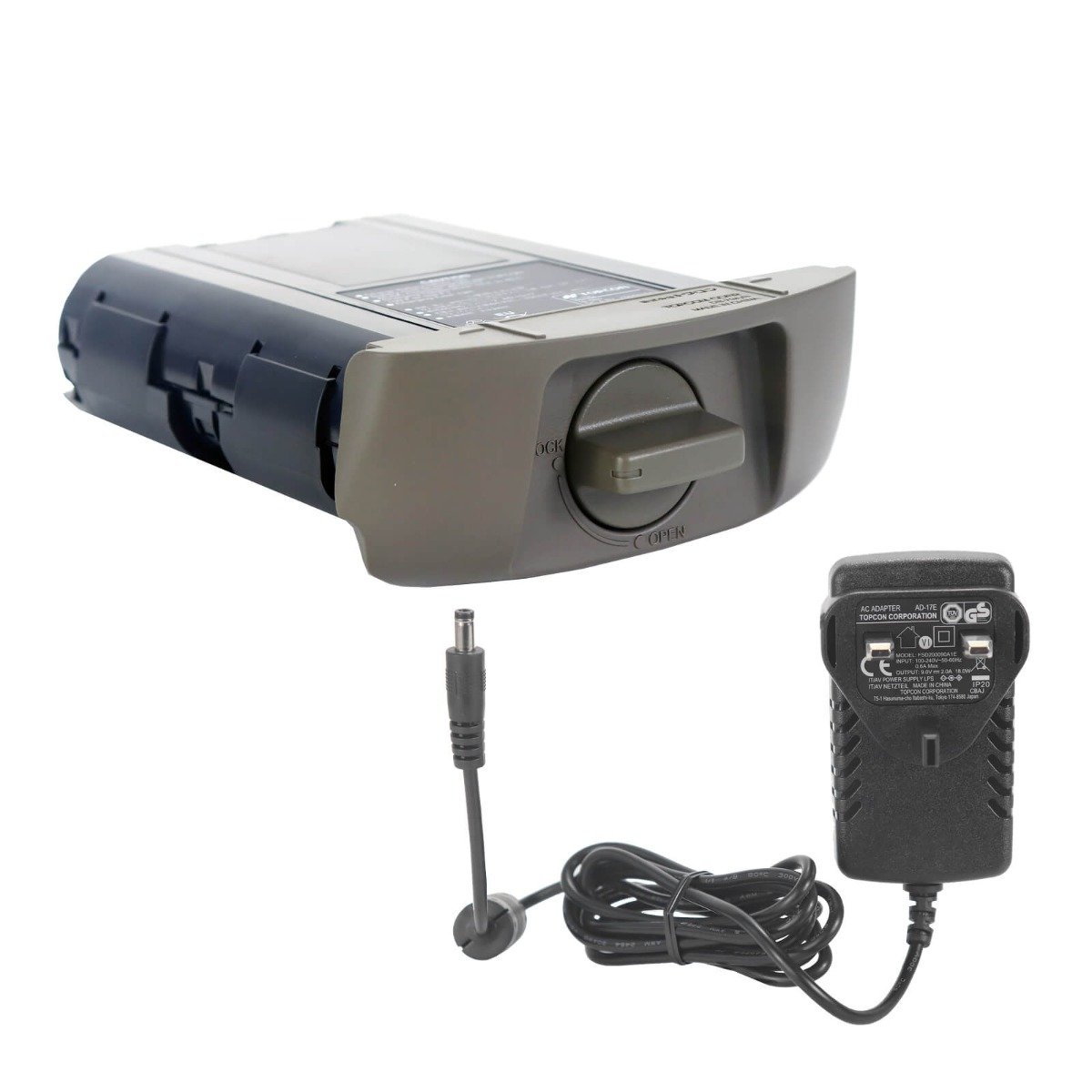

Rechargeable Battery Pack, BT-79Q
Battery Cradle, DB-79A/B
UK Mains Battery Charger, AD-17C/E
Robust Carry Case
Quick User Guide & Safety Manuals
Warranty: 5 Years
