Product Overview
Fukuda FRD400R Rotary Detector
Fukuda FRD400R Laser Detector (receiver) to extend the range of the FRE-203XR to 500 metres diameter.
It also suits ALL BRANDS & models of visible red beam Rotary lasers spinning at 600+ rpm.
(Note: This Detector is NOT suitable for green beam Rotarys or any Cross Line laser)
Features
40mm reception window picks up the beam quickly and makes it easy to stay in range. Two LCD screens both front & back.
Blue tint back-lights are included.
Two deadband sensitivity settings are selectable: high accuracy +/-1.5mm and low accuracy +/-2.5mm, allowing adaptation to meet all your job site requirements.
Dust and weatherproof housing to IP55.
Top mounted magnet & bubble level.
Continuous usage, 30 hours battery life with auto switch off facility.
Specification
Detecting Sensitivity: fine & course settings (+/- 1mm, +/-2.5mm)
Display: Front & back LCD, back-lit
Audible pitch warning, selectable: off / quiet or loud sound
Power supply: 1 x 9V, PP3 alkaline battery
Operating time: Approx 30 hours continuous, at 20 deg C.
Low battery warning via LCD.
Power conservation: 20 minutes auto cut-off.
Working temperature: -20 to +50 deg C.
Dimensions: 74 x 31 x 155mm
Weight: 260g (with battery), 450g (with battery & bracket)
Mounting bracket: model FMB-01
Technical specification
Suits the following FUKUDA family of laser levels:
FRE-202 red beam
FRE-205 red beam
FRE-211 red beam
FRE-301 red beam
FRE-203X red beam
FRE-203XR red beam
FRE-203XT red beam
Comprises of

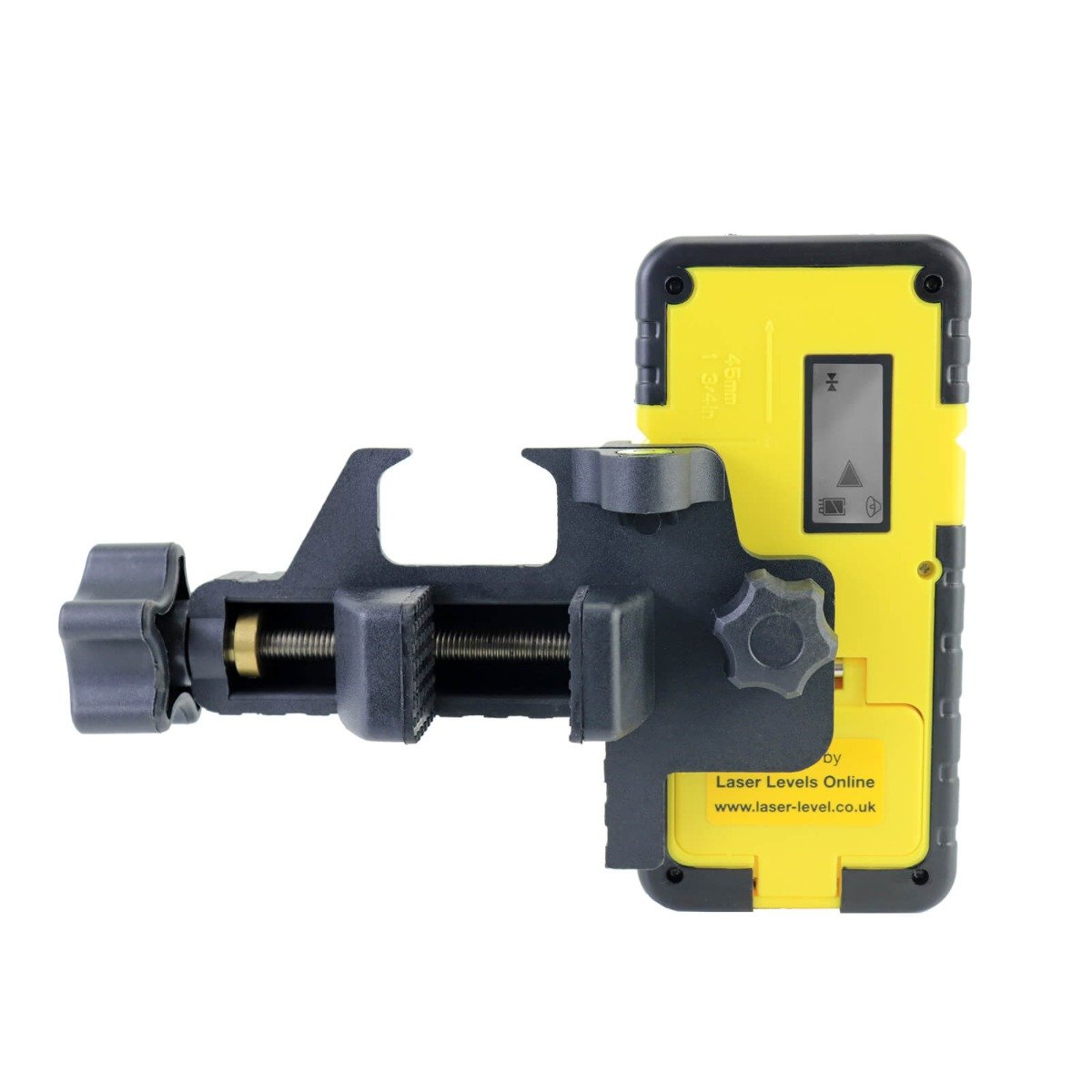

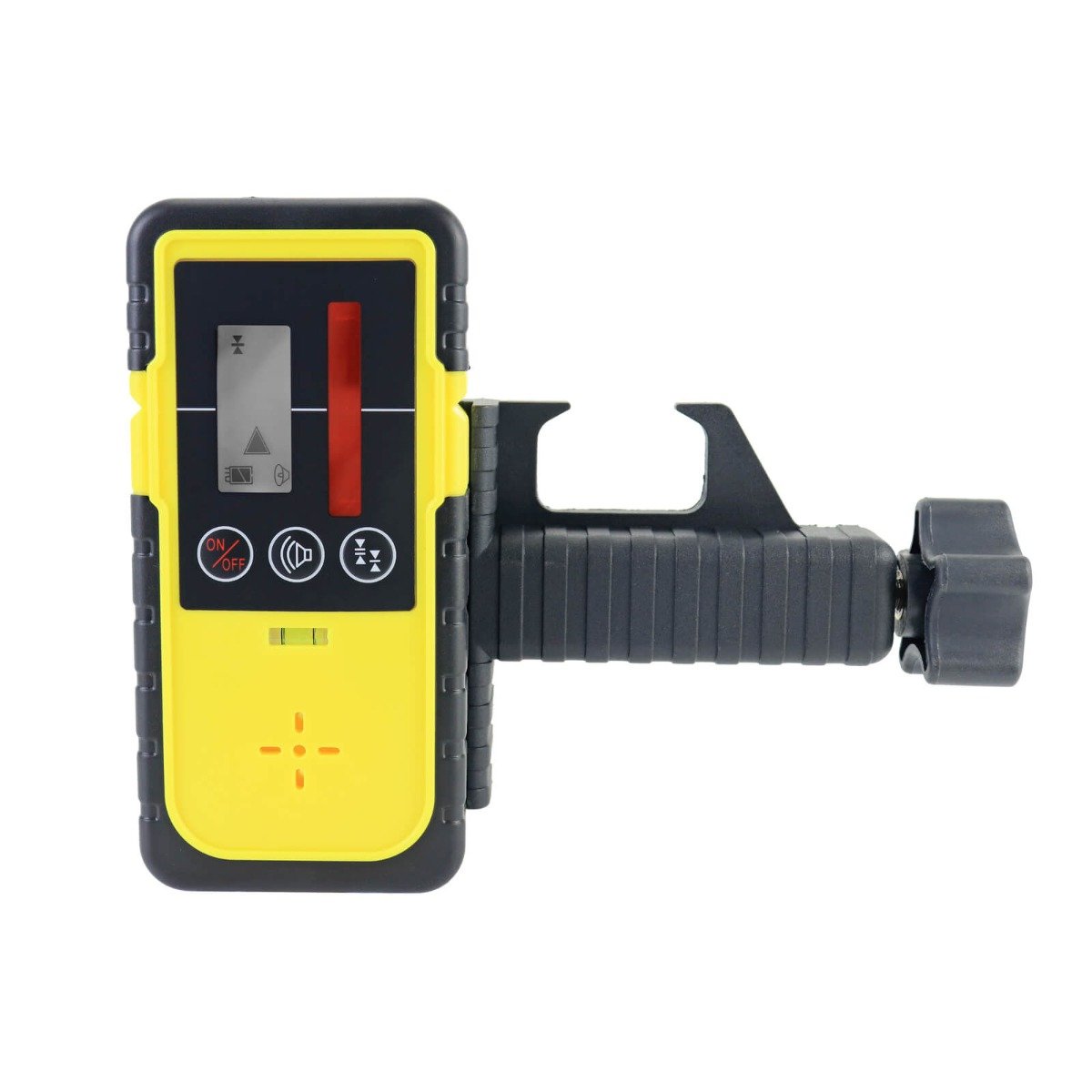

Fukuda FRD400R Detector
9V Alkaline Battery
Staff Mounting Bracket
Fukuda 1 Year Warranty
