Topcon RL-H5A - Kit HIRE
Regular price
£75.98
Weekly Hire Price Including VAT
Note: This Hire service is currently only available to customers in England, Wales & the Scottish Lowlands. It is not available in the Scottish Highlands & Islands, Northern Ireland, Isle Of Wight, Isle Of Man, Republic of Ireland, Jersey, Guernsey, Alderney or Sark.
Select Hire Start Date & Hire Duration
Share
Product Overview

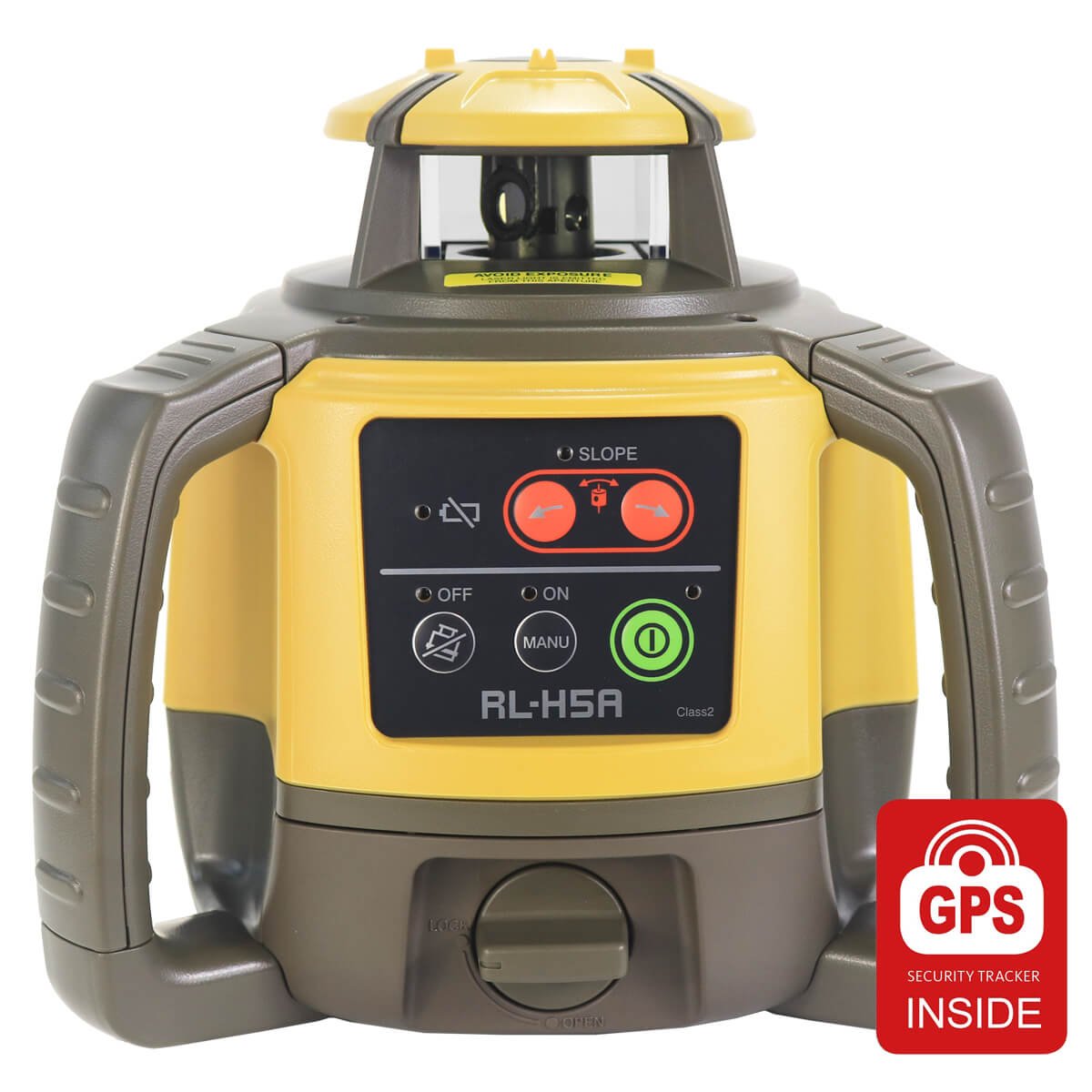

Topcon RL-H5A Rotating Laser Level Kit is the next generation of self levelling construction Lasers. With a high accuracy and a long range, the RL-H5A is simple to use for checking elevations. Proven reliability on any job site with long-range consistency and ease of use.
With electronic self-levelling, you press the power button and go right to work in seconds. If the RL-H5A gets disturbed on the job it relevels itself automatically. The self-leveling motors are accurate to ±1.5 mm at 30m..
The instrument has the power and range to cover a 800m diameter job site.
The RL-H5A gives you the option of up to 60 hours of continuous usage with the rechargeable battery pack or 100 hours with (4) D cell batteries.
With the IP66 rating, the RL-H5A is “job site tough” and can withstand dust, a sudden shower and even torrential rainfall.

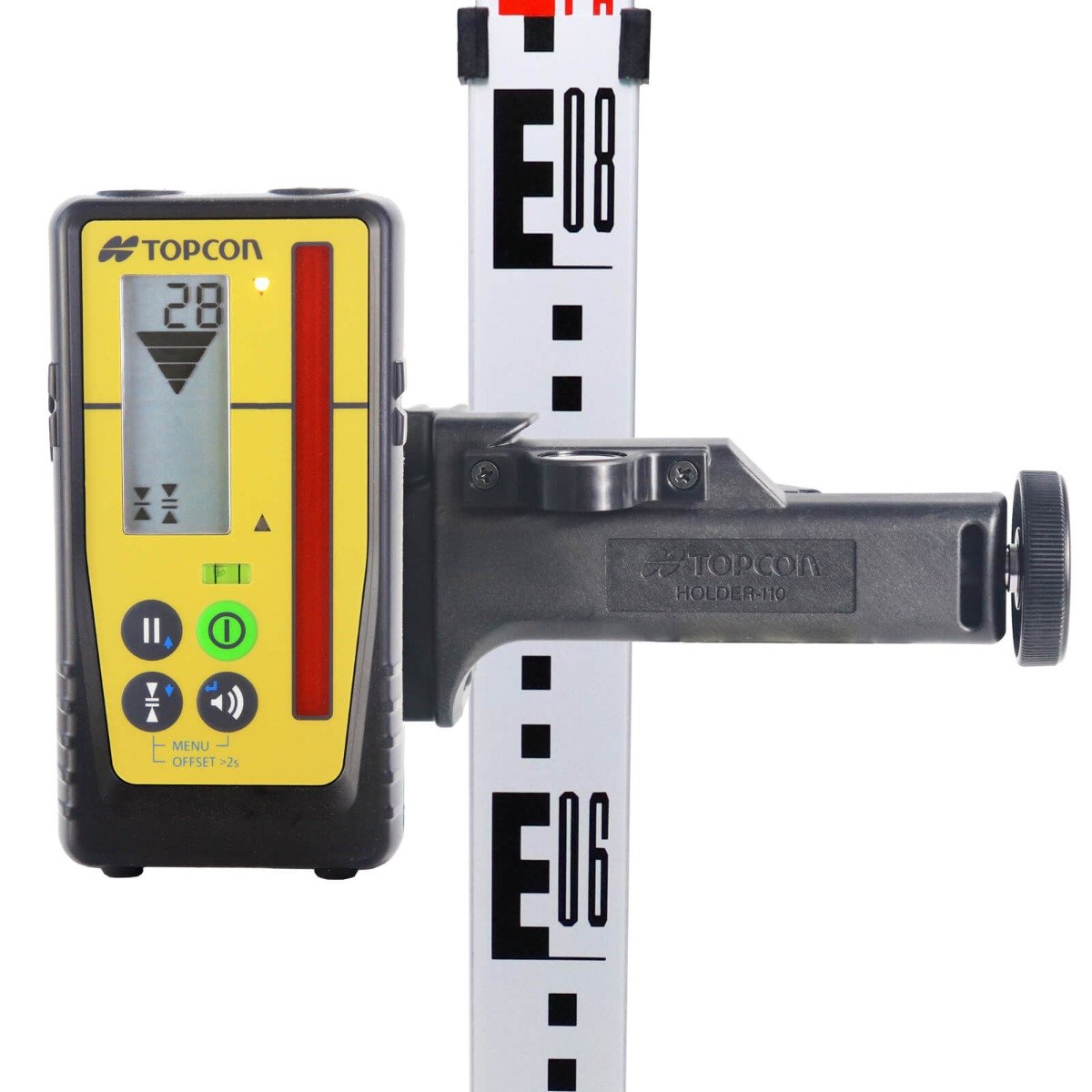

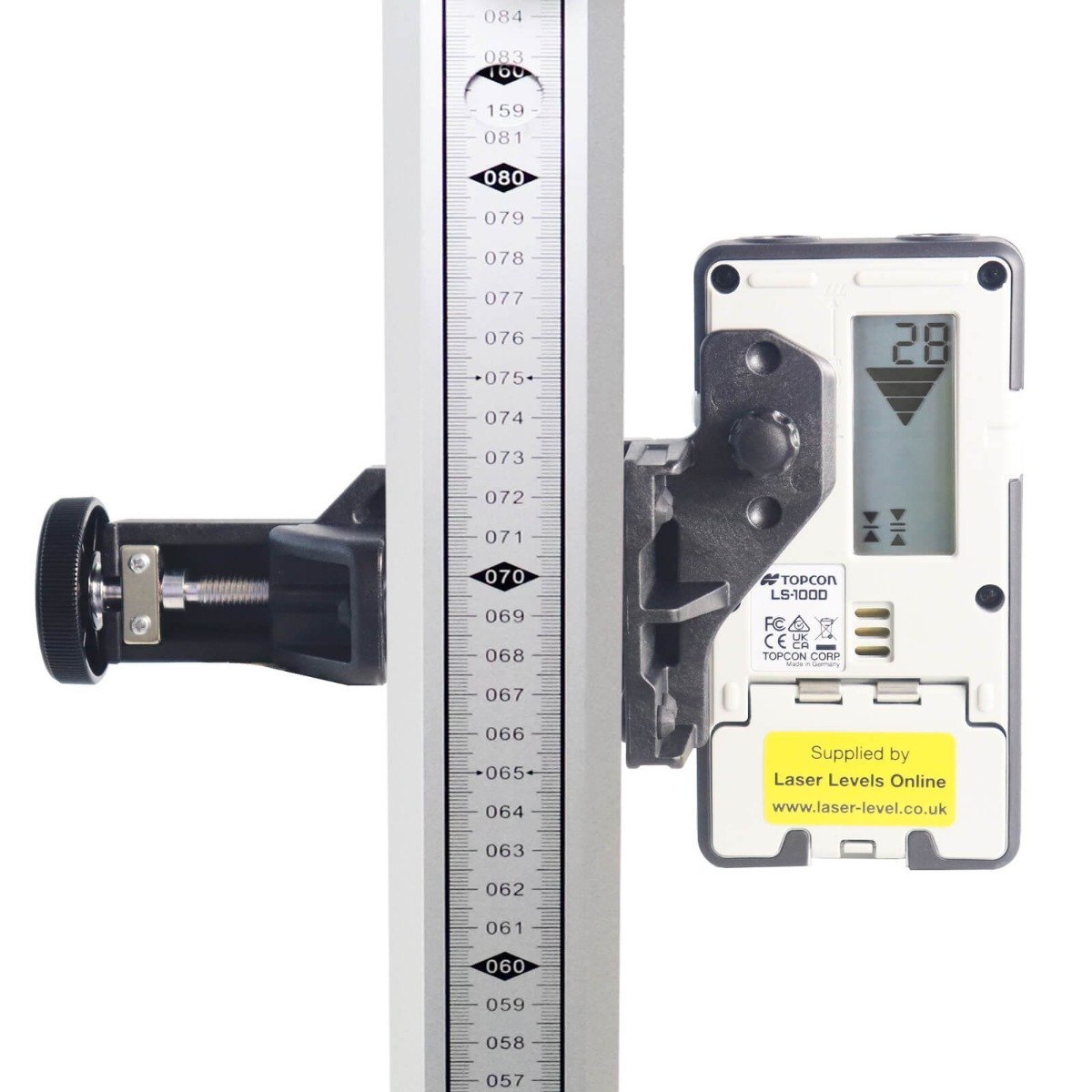

Include this Topcon LS-100D Detector with Digital Readout (mm/inch). Shows the mm/inch scale to see the elevation or drop on the display e.g 10mm - 8mm - 5mm - 2mm - LEVEL. Includes Holder 110.
Specification
RL-H5A Laser Specifications:
Laser Source: Laser diode (Visible, 635 nm) IEC Class 2
Laser Accuracy: ±1.5 mm at 30m, (±1/16 in at 100 ft)
Laser Operating Range: 800m diameter (with detector)
Self-leveling Range: ±5 degrees
Compensation Method: Electronic self-leveling
Single Axis Manual Slope Mode: Yes
Power Source: Ni-MH battery pack BT-79Q (7000mAh) or 4xD size dry cell batteries (alkaline)
Battery Life: Rechargeable 60 hours, or Alkaline 100 hours
Charging Time: Approx 13 hours (Using with AD-17C/E)
Rotation Speed: 600rpm
Tripod Mount (Horizontal and Vertical): 5/8” x 11
Operating Temperature: -20 to 50°C (-4 to 122°F)
Storage Temperature: -30 to 60°C (-22 to 140°F)
Water and Dust Protection: Yes, IP66 (IEC60529: 2001)
Size: 172 (L) x 211 (W) x 205 (H) mm
Weight: 2.5 kg (5.5 lbs) (with BT-79Q) or 2.3 kg (5.1 lbs) (with dry cell batteries)
Detector features
Kit includes LS-100D Detector & Bracket:
Versatile and designed for maximum user convenience, the LS-100D features a digital readout to confidently deliver elevation and vertical alignment control on demand.
It features an extra-wide beam capture sensor that also rejects annoying interference from strobe light exposures. The large and bright LCD displays (front and rear) feature 9-channels of grade information and digitally show the distance to on-grade. By pressing the Hold button, the display is locked so the user can conveniently read the results. For added versatility, three colored LED’s and a strong magnet mount are embedded for vertical operation, ideal for steel erection or operator grade checking while excavating.
To assist in monitoring the Topcon rotating laser, alert icons appear on the LCD if the instrument is disturbed (HI alert) or when the laser battery is low.
Specification:
Working Range (diameter): 800m
Vertical Detecting Range: 90 mm (3.5 in.); (-30 mm to +60 mm) (-1.1 in to +2.3 in.)
LCD Digital Readout Range: 70 mm (2.7 in.); (-20 mm to +50 mm) (-0.7 in. to +1.9 in.)
Strobe Light Suppression: Yes
Unit: mm / cm / inch / fractional inch
On-Grade Resolution:
±0.5 mm (±0.02 in.):
±1.0 mm (±0.05 in.)
±2.0 mm (±0.10 in.)
±5.0 mm (±0.20 in.)
±10.0 mm (±0.50 in.)
LCD Grade Indicators 9 Channels
LED Grade Indicators: Orange, Green, Red (On/Off selectable)
Display LCD on each side
Buzzer: Loud/Low/Off selectable
Operating Time: Up to 45 hours with alkaline batteries
Battery Level Indicator: LCD Icon
Auto Shut-off Approx: 30 minutes
Dust/Water Rating: IP67 (IEC 60529)
LS-100D Detector upgrade includes:
LS-100D instrument
AA Alkaline batteries x 1
Mounting bracket
Instruction & safety manual
Technical specification
Accuracy:
+/- 1.5mm @ 30 metres, max. operating diameter 800m (400m either side of the instrument).
An accuracy of +/- 1.5mm @ 30 metres is equivalent to 0.05 mm/m and to put that into perspective, the best premium German spirit level has an accuracy of +/- 0.5 mm/m or +/- 15mm @ 30 metres.
Example usage
Checking/setting elevations, concrete forms, footings, and foundations for small- and medium-sized job.
Basic slope work such as driveways and ramps
Excavations, digging footings and septic tanks
Also included in the kit
The Tocon RL-H5A Rotary Kit also includes the following accessories:

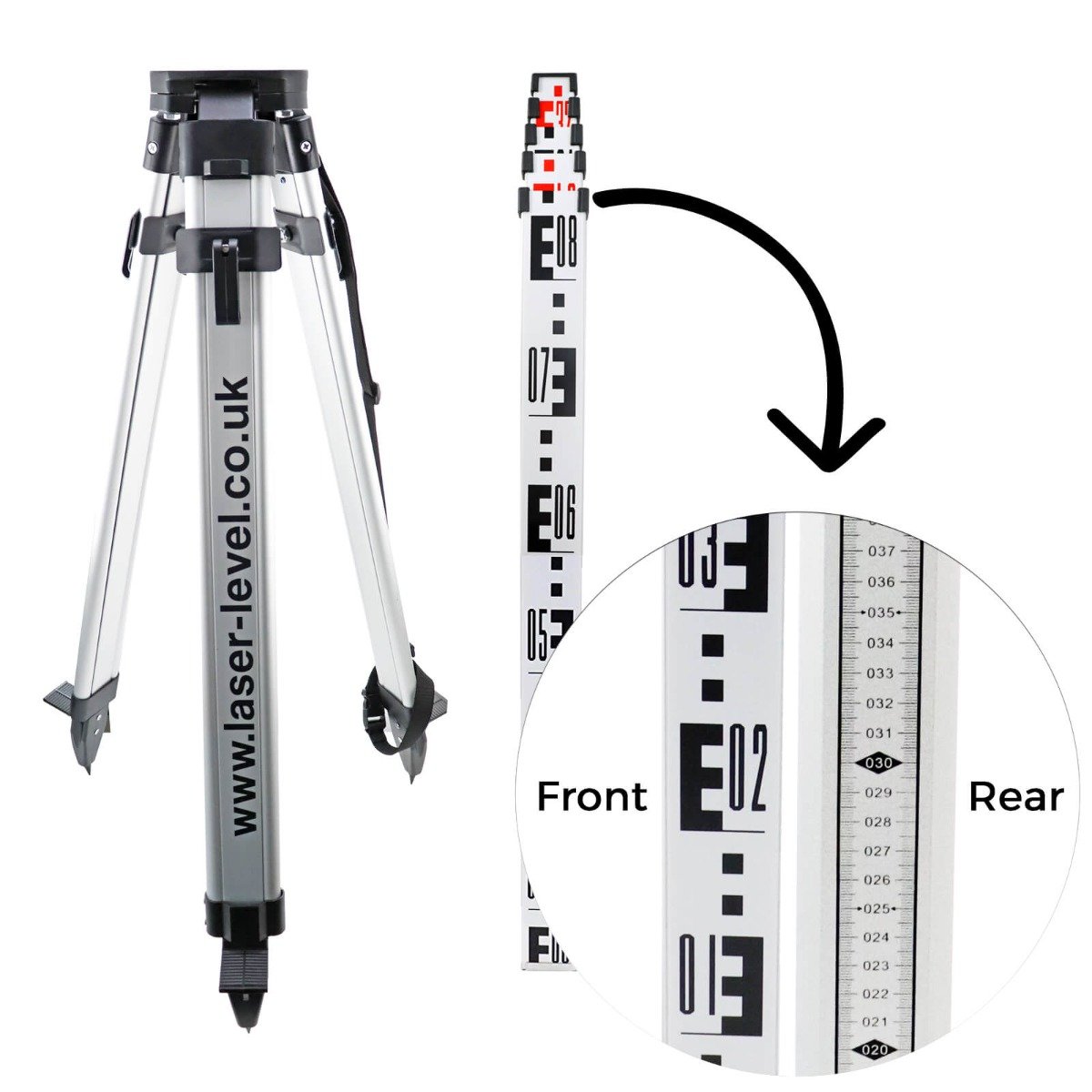

4m Telescopic Levelling Staff (Model: TLS4S)
4m, 5-section, Telescopic Levelling Staff.
Five robust aluminium sections with abrasion proof scale.
Closed length height 970mm, extending to maximum height of 4m.
Automatic locking buttons when extended.
Millimetre scale on back and E-graduations (1cm) markings on front
Rear mm scale (for use with laser levels) has ZERO mm marking at ground level.
Red / Black coded front sections.
Accepts all Laser detector mounting brackets.
Removable, rear-mounted circular Bubble Level.
Carry sleeve.
Height: 0.97m closed length to extended max 4m.
Weight 1.15kg.
Surveying Tripod (Model: S-LAT)
Maximum 1.5m height.
Robust aluminium tripod.
Extending legs with quick-release, toggle clamp adjustment.
Flat top, mounting head.
Head size 130mm
5/8 inch x 11 thread.
Closed length 0.925m
Max. Opened height 1.5m approx.
Weight: 3.4kg
Carry strap

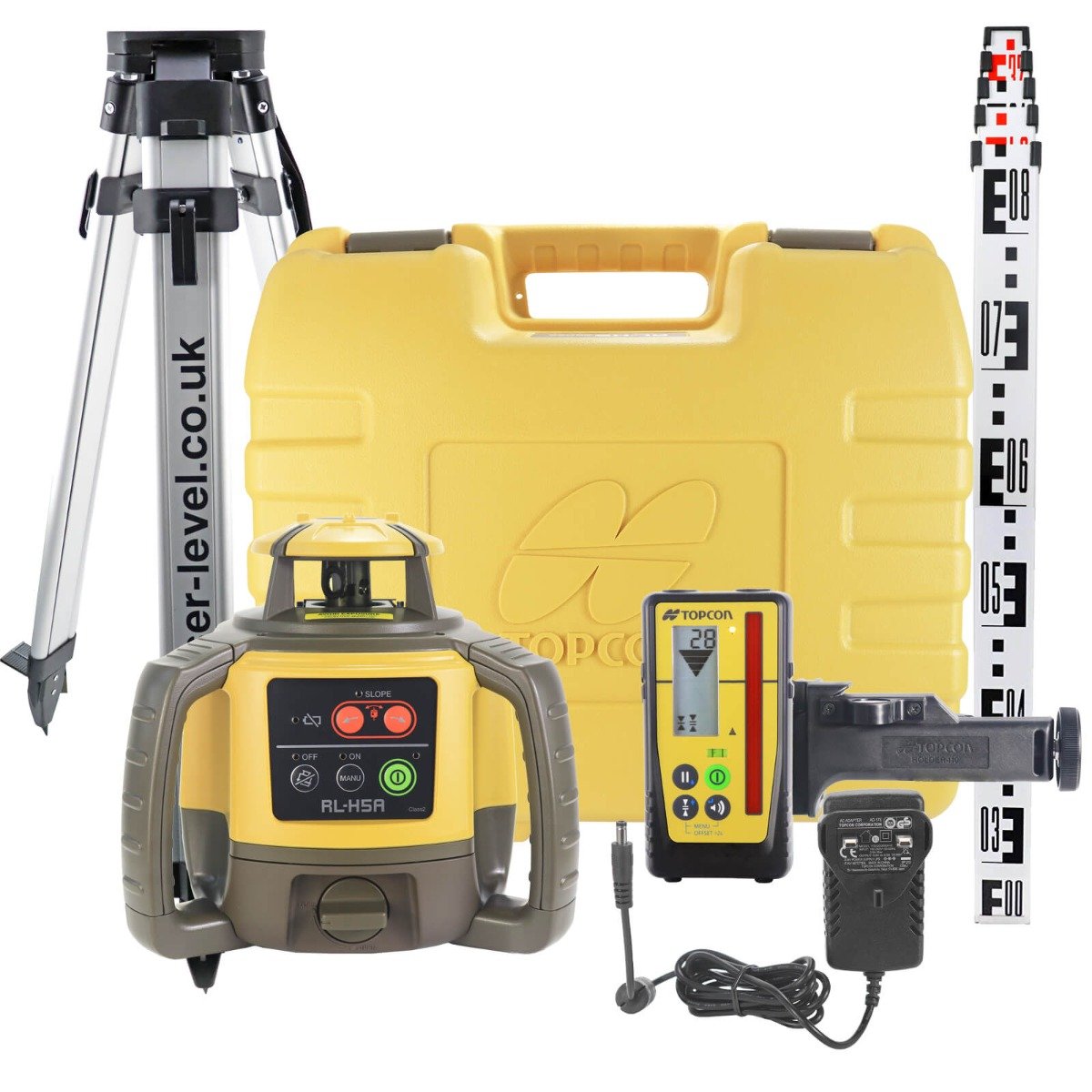

Kit comprises of
Topcon RL-H5A Rotary Laser Level (checked and pre-calibrated)
Topcon LS-100D Laser Detector With Staff Mounting Bracket (Holder 110) & Batteries

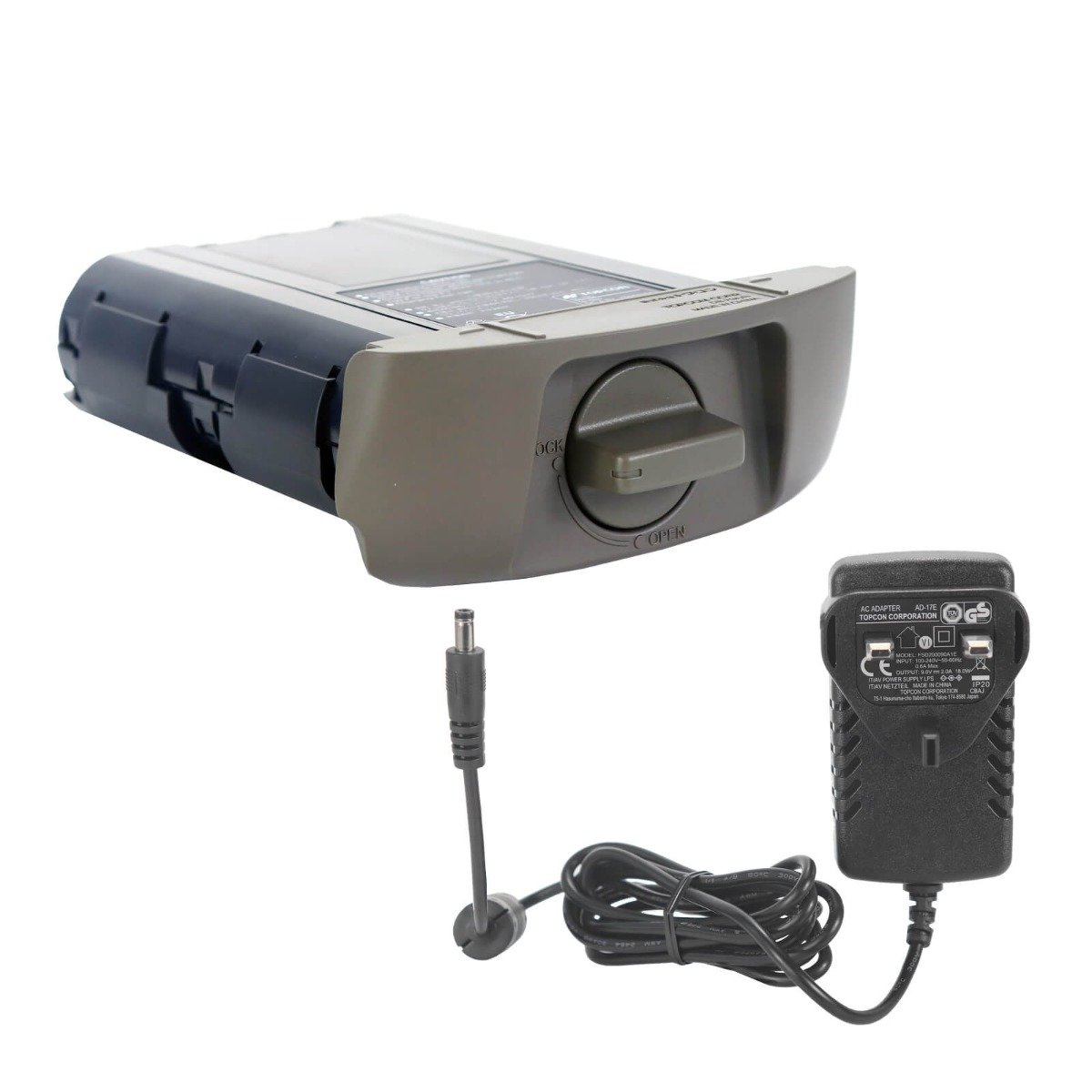

Rechargeable Battery Pack, BT-79Q
Battery Cradle, DB-79A/B
UK Mains Battery Charger, AD-17C/E
Surveying Tripod
4m Measuring Staff, Type TLS4S
Robust Carry Case
Quick User Guide & Safety Manuals
Payment & Delivery
GPS Tracking Device Installed
Free Delivery
Note: This Hire service is currently only available to customers in England, Wales & the Scottish Lowlands. It is not available in the Scottish Highlands & Islands, Northern Ireland, Isle Of Wight, Isle Of Man, Republic of Ireland, Jersey, Guernsey, Alderney or Sark.
England, Wales & Scottish Lowlands
Next Working Day
FREE
No minimum spend
Delivery by DPD is available on all Hire products in England, Wales & the Scottish Lowlands, if the order is placed by 3:45pm Monday to Friday.
GPS tracked to your Door & 1-Hour delivery window.
Scottish Highlands & Islands
NOT AVAILABLE
NOT AVAILABLE
Isle Of Wight & Isle Of Man
NOT AVAILABLE
NOT AVAILABLE
Northern Ireland
NOT AVAILABLE
NOT AVAILABLE
Channel Islands (0% UK VAT)
NOT AVAILABLE
NOT AVAILABLE
Return Collection
When you have finished with the Laser Level kit, or the rental period is nearing the end, please follow the steps below.
(Recommended Option)
Or

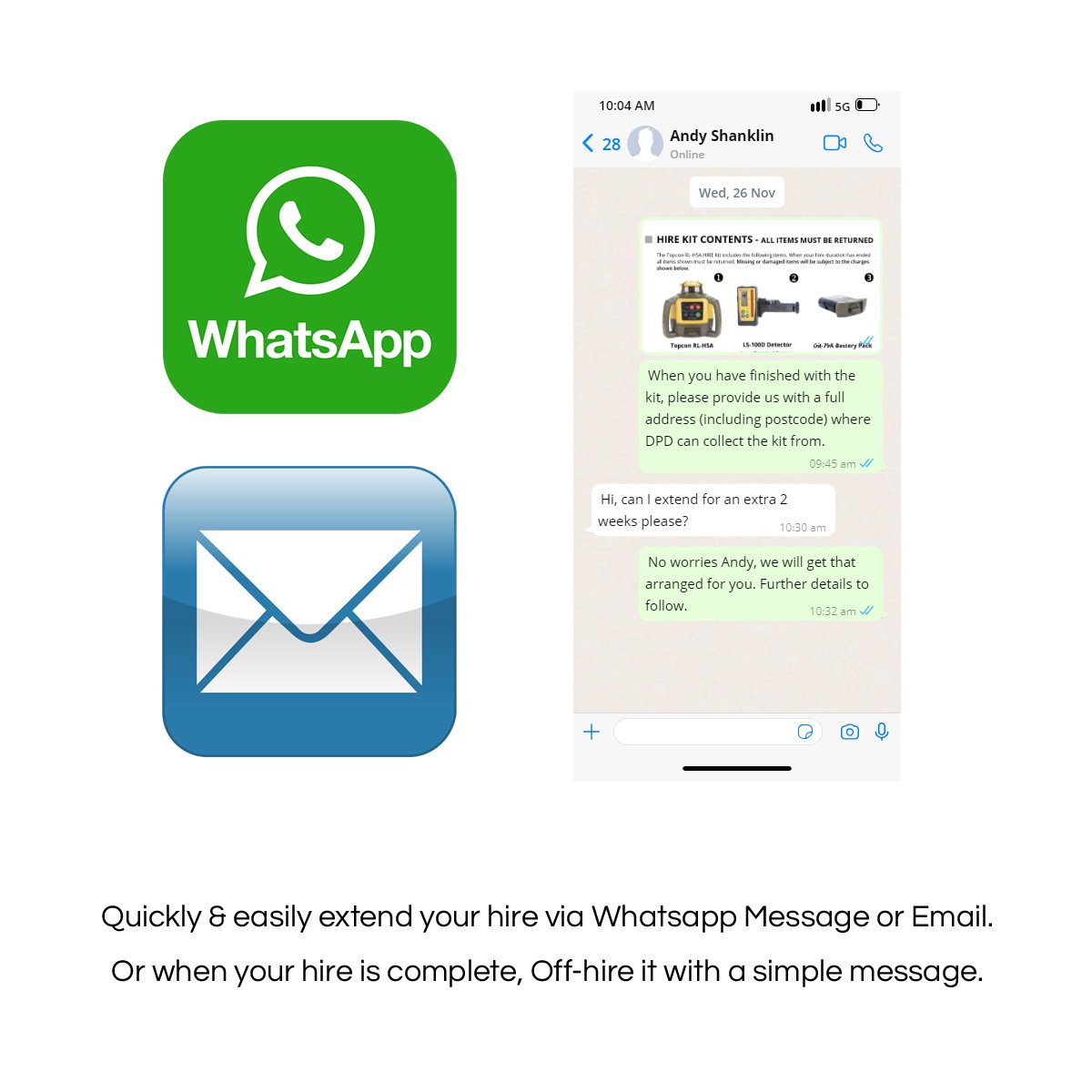

If you would like to extend the rental period please let us know and we will be happy to assist.
Or if you have finished with the kit, please provide us with a full address (including postcode) where DPD can collect the kit from.
DPD are only able to collect Monday - Friday, 8am - 5pm. Collections are not possible on Saturday or Sunday or on Public Holidays.
Prepare the Hired products for Return
For Hired Laser Levels, ensure all of the Laser Level Kit contents are placed back in the carry case. A list of the original Kit contents is shown in the kit contents laminated sheet.
For Hired Laser Detectors or Accessories, ensure all items are placed back in the box. A list of the original contents is shown in the kit contents laminated sheet.
Missing items will be subject to charges.
All hired items must be returned in the original outer cardboard boxes ready to be returned.
DPD Collection
DPD will email & text you a 1-Hour collection window on the day of collection.
Prior to Collection, please affix the DPD Return Labels (which can be found inside the cardboard box) to the outside of the box or boxes.
Please ensure there is access to the property (gates are not closed etc...)
The drivers are usually very quick, so please keep a lookout for the driver during this time so that the collection is not missed.
When the driver arrives hand the box or boxes over for inspection. You or someone else must be present to hand over the boxes.
The Kit will then be returned back to us.
