Fukuda FRE-205 DUO - Kit HIRE
Regular price
£44.99
Weekly Hire Price Including VAT
Note: This Hire service is currently only available to customers in England, Wales & the Scottish Lowlands. It is not available in the Scottish Highlands & Islands, Northern Ireland, Isle Of Wight, Isle Of Man, Republic of Ireland, Jersey, Guernsey, Alderney or Sark.
Select Hire Start Date & Hire Duration
Share
Product Overview
Kit Overview
The FRE-205 is a horizontal levelling laser which has been designed specifically for exterior Groundworks. It is constructed with a rugged housing and has an automatic drift system (bump sensor), together with the facility to Dual Grade; making this the laser of choice for Groundworks Contractors.
Included Fukuda FRE-205 DUO kit is an EK-112R Cross line laser to cover most indoor work. Its auto levelling has very bright red beams & is supplied with an "L" shaped, magnetic mounting bracket (for wall mounting etc). This combination has proved to be very popular even for Groundworkers who have found the Crossline laser useful for other indoor tasks.

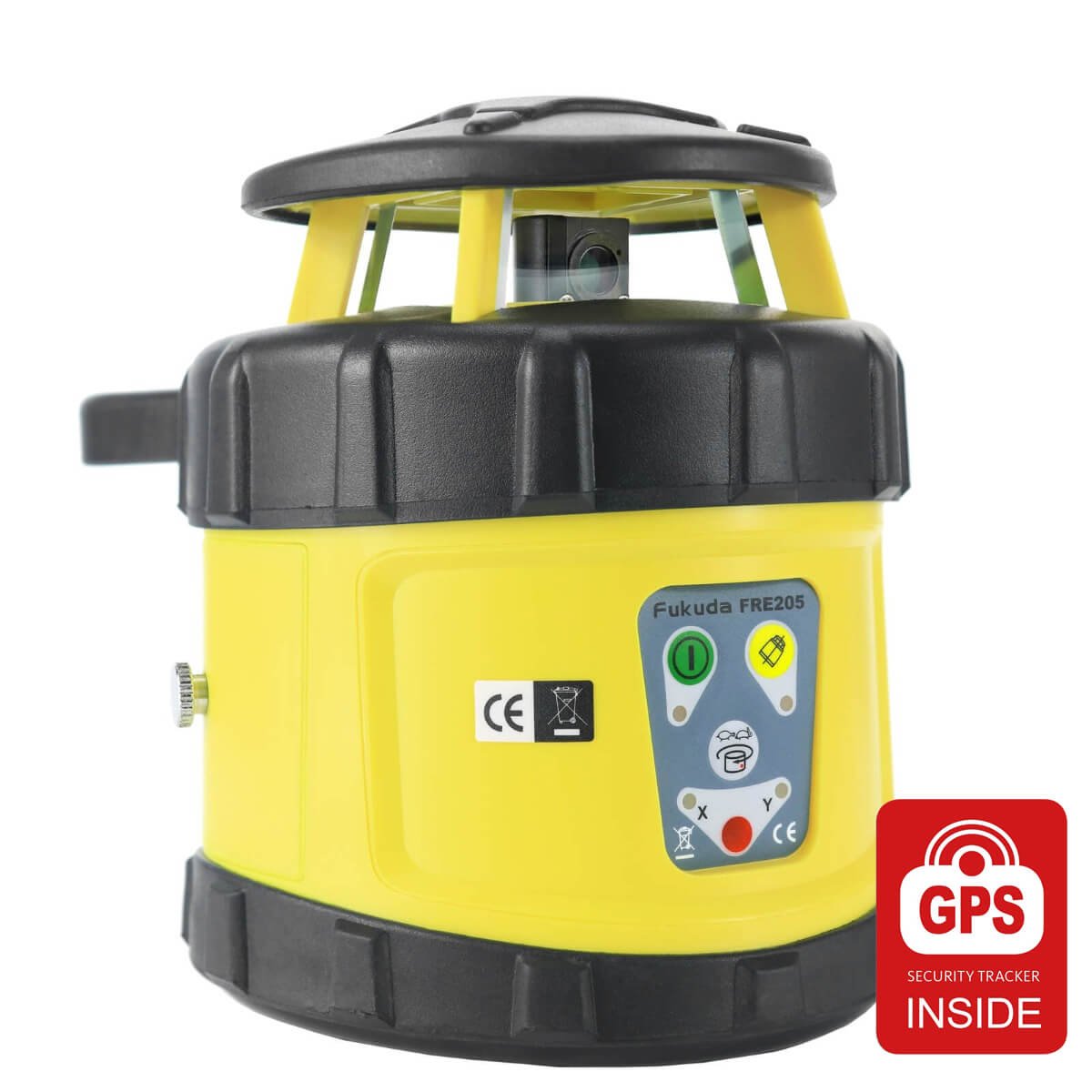

Rotary Laser Level:
The FRE-205 auto levels horizontally; is accurate to +/-3mm over 30m and has a 500 metre range, using the supplied laser detector.
For site Groundworks use, the laser has a dual grade facility too. Switch off the auto levelling by pressing the Manual button on the remote control. This enables the User to accurately and easily set slopes (grades) in both X and Y axis, as required.

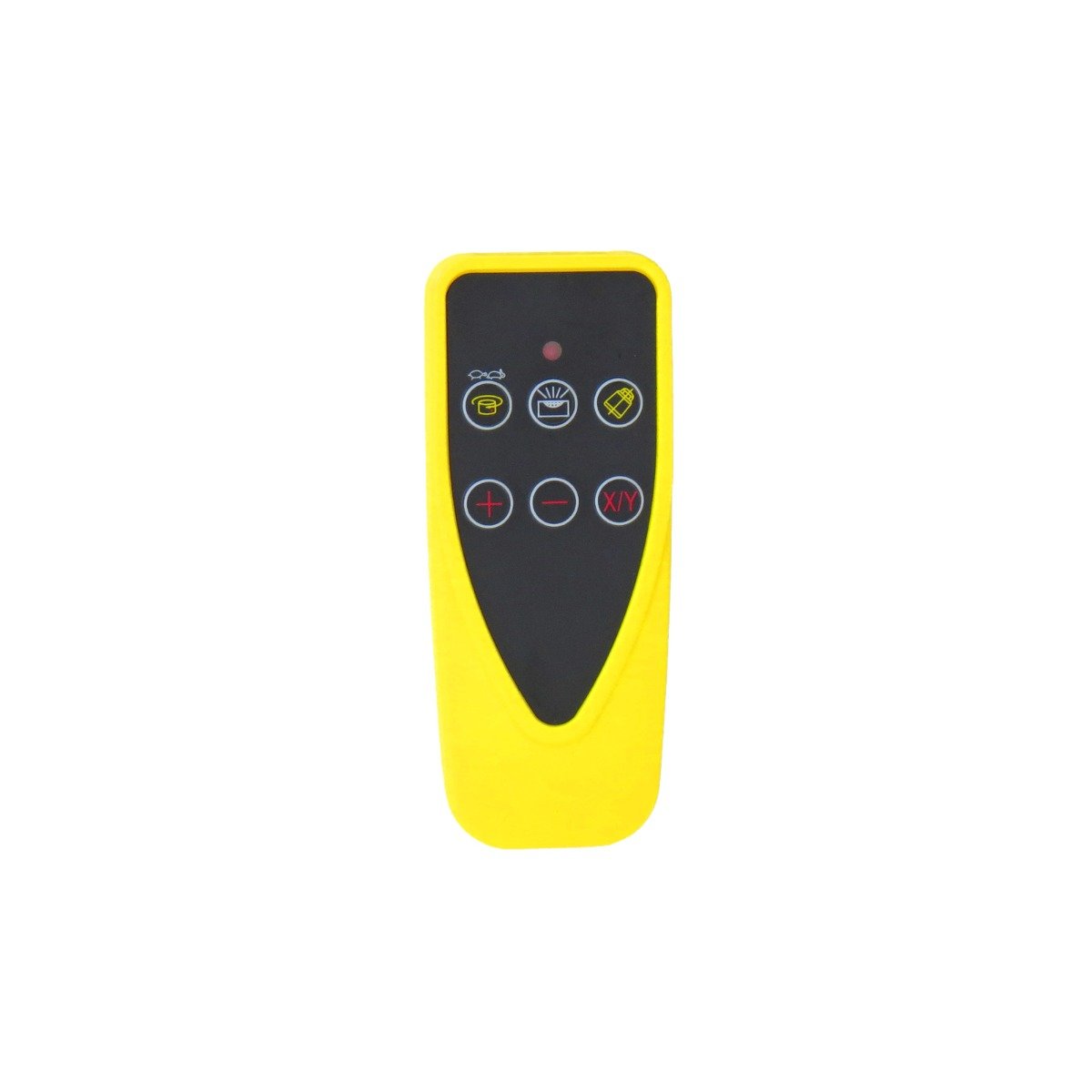

The FRE-205 kit also includes a remote control - to enable you to adjust the rotating speed (for indoor work) and outdoors - to set Grades (slopes), as described above. A very useful feature, which allows control from a distance without the laser level being disturbed.
Note: Outdoors, we recommend setting the rotating speed to maximum (600rpm) to give the best operating distance & stability, when using the detector. For User convenience, the FRE-205 can operate on either the 4pc x 'AA' Ni-MH rechargeable batteries (supplied) or 4pc standard 'AA' alkaline batteries.

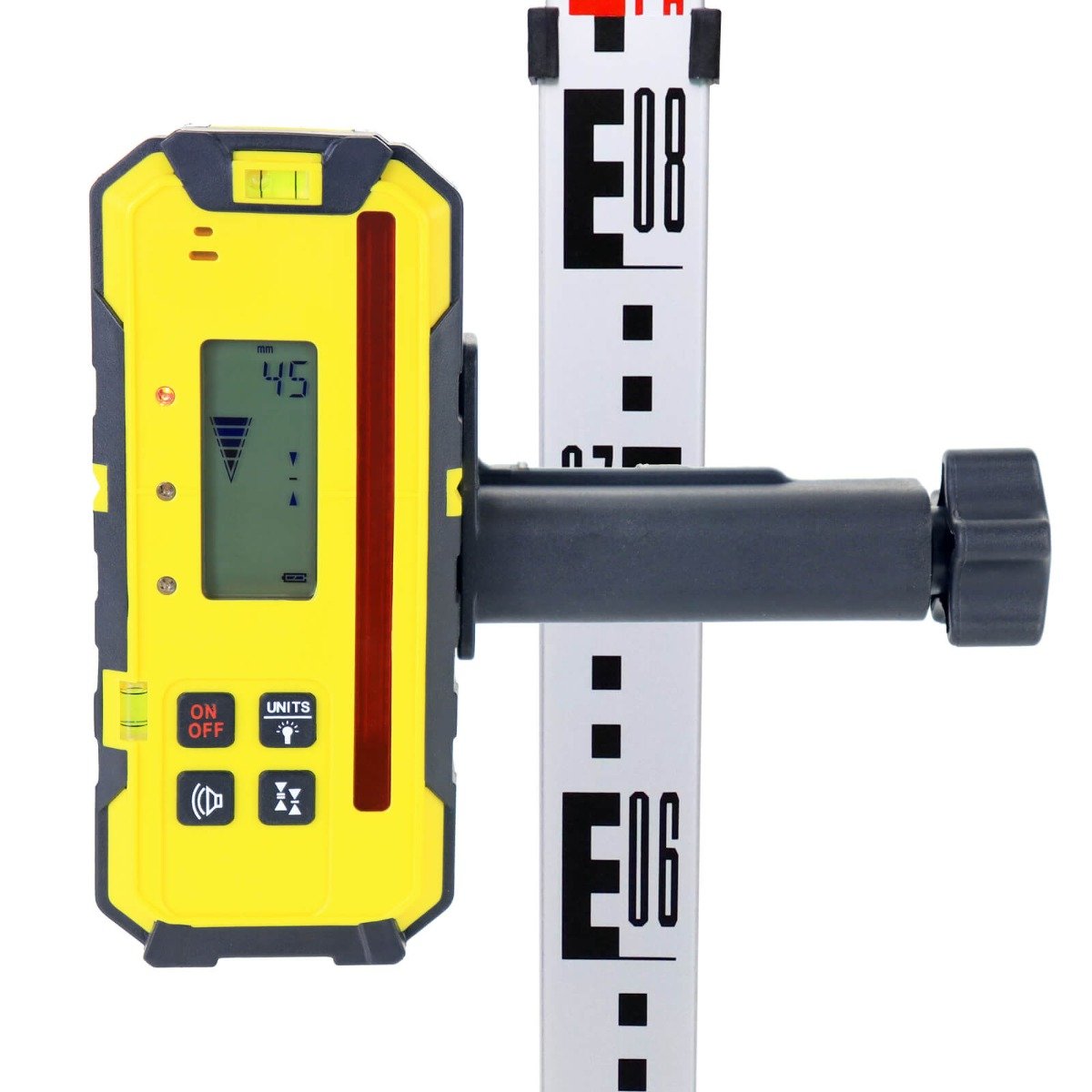

Laser Detector (mm/inch)
The FRD800R Laser Detector is a highly versatile, well-featured laser receiver for both basic and advanced levelling and aligning applications; designed for general, concrete and site preparation contractors.
It features a digital readout of elevation that provides a numeric display of +/-45mm to 1mm resolution. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity. The readout is displayed on the large front and rear LCD's, showing exactly how far the elevation is from on-grade. A back-light assists readings in low ambient lighting.
Selectable units of measurement can be displayed to meet your specific application: in mm, cm or inches. A 125mm long red pick-up window, more than double the industry standard, allows quick acquisition of the laser beam. Readings are shown in three ways: via back and front LCD, coloured LED indication and by audible sound, selectable loud/normal/off.
This detector is designed to survive tough construction site conditions, being water and dustproof to IP55.
It can be used as either a hand-held or staff mounted detector for a wide range of construction applications.

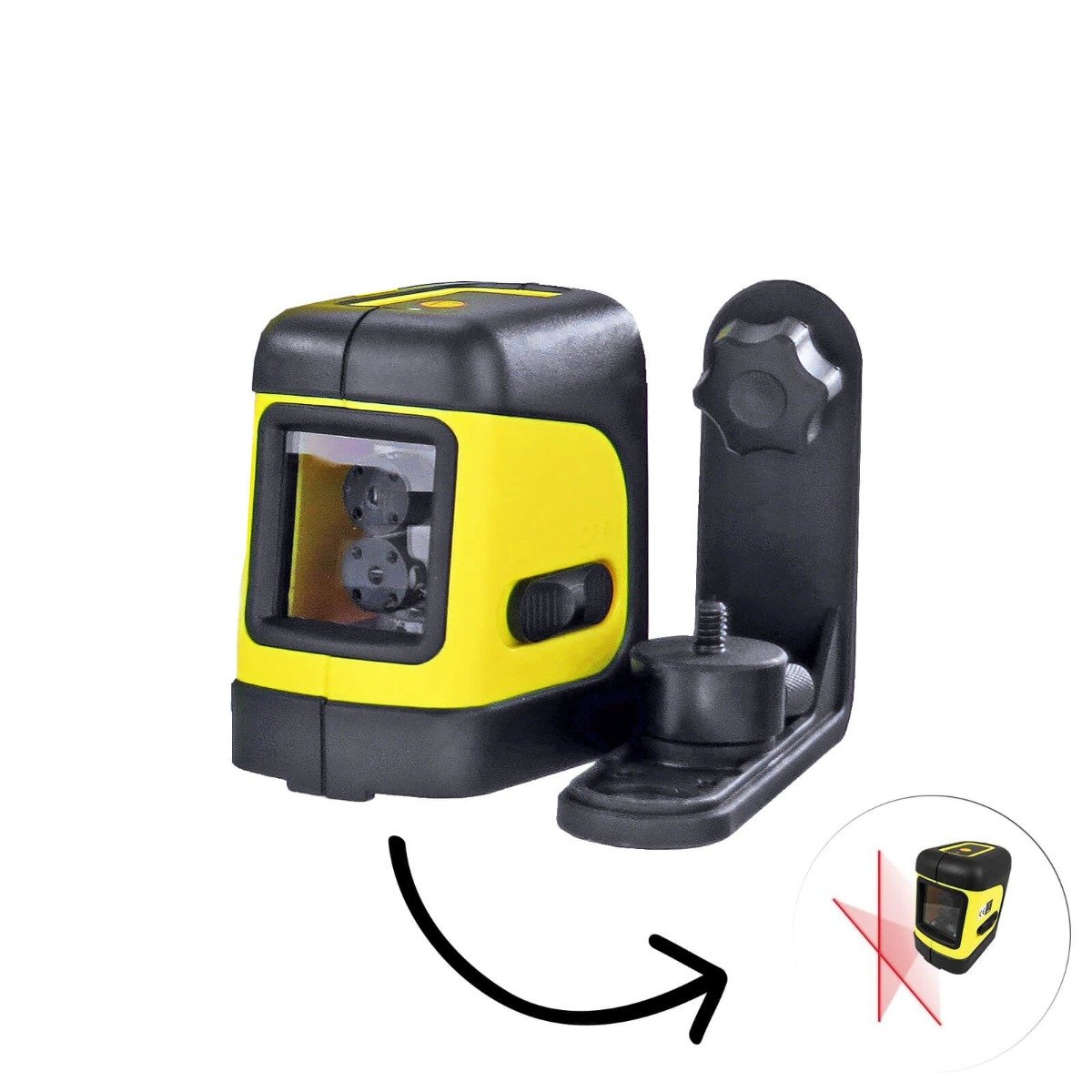

Cross Line Laser:
The EK-112R auto levels quickly & accurately; giving a fine, very bright, red laser cross - ideal for both horizontal & vertical setting-out. Both beams can be switched On & Off independently.
A transit latch protects the mechanism (to avoid transportation damage) and the case is surrounded by a black rubber cover for worksite protection.
It comes with a very handy multi-function magnetic "L" shaped bracket which acts as an All-in-One system: a wall mounting Bracket & a 5/8" tripod Adapter. This gives the User the choice of mounting the laser onto a tripod or a Floor to Ceiling Pole with either 1/4" or 5/8" threads. (Please see our Accessories section for various Pole Kits.)
This "2 in 1" DUO package covers both indoor & outdoor groundworks applications, for the General builder.
All in all, its a very versatile & popular kit.
Features
FRE-205 Rotary Laser
Horizontal setting only
Auto levelling
Anti-drift protection system. (bump sensor)
Dual grading in both the X / Y axis.
Automatic / Manual mode is easliy selected.
Variable speed rotation for maximum visibility in any lighting conditions.
Wide electronic self-levelling range (ie. It will auto level on surfaces up to +/-5 deg.)
Low battery indicator - so you don't run out of power at the wrong time!
Heavy duty glass enclosed beacon and durable sealed housing is water and dust-proof (to IP54), to ensure years of reliable operation.
EK-112R Cross Line Laser
Horizontal & Vertical red laser cross
Laser lines switchable independently
Auto levelling
Manual facility
Transit latch protection
Specification
FRE-205 Rotary Laser
Laser Diode: Class II, red beam 635nm
Horizontal accuracy: ±3mm @ 30 metres
Working range: Up to 500m diameter with the supplied Detector
Levelling type: Electronic Self-levelling
Rotational speed: Variable from zero to 60, 120, 300 & max 600rpm
Grade facility: Dual axis X and Y axis up to +/-9% (1 in 11.1)
IR Remote control: range approx. 20 metres
Operating temp: -20 to +50 deg C.
Protection: Water and dust-proof to IP54
Power: Ni-MH rechargeable batteries with mains charger (supplied), or 4 x size AA alkaline batteries can be used (not supplied).
Running time: approx. 25 hours continuous
Tripod Mounting thread: 5/8" - 11 tpi
Dimensions: 190L x 145W x 166H (mm)
Weight: 1.2kg with batteries
EK-112R Cross Line laser
Accuracy: +/-2mm @ 10 metres
Working range: approx. 10m depending on ambient light.
Mounting thread: 1/4"
Laser diode: red beam 635nm (1mW)
Laser class: 2
Self levelling range: +/-4 degrees to true horizontal.
Self levelling time: max. 5 secs.
Power supply: 2pc x AA alkaline batteries.
Battery life: at 20 deg C, 2 beams around 8hrs.
Operating temperature: -10 to +50 deg C
Unit dimensions: 82 x 57 x 90mm
Weights: Instrument with batteries, 360g.
Weights: Complete kit with bracket & carry case etc, 590g.
Technical specification
Accuracy:
+/- 3mm @ 30 metres, max. operating diameter 500m (250m either side of the instrument).
An accuracy of +/- 3mm @ 30 metres is equivalent to 0.1 mm/m and to put that into perspective, the best premium German spirit level has an accuracy of +/- 0.5 mm/m or +/- 15mm @ 30 metres.
Dual Grade facility:
Dual axis X and Y axis up to +/-9% (1 in 11.1)
Both X & Y axis can be set to give a maximum fall of up to 0.9m at 10m distance away. (ie. 1 in 11.1 & +/-9% grade)
Example usage
This DUO kit is designed to be used by Groundworks Contractors for:
General earthworks for footings, foundations, slab laying, drainage & landscaping etc.
&
for Internal Trades:
Ideal for wall Tiling / Stud wall & partitioning / Kitchen & bedroom unit installations / all Shop Fitting & refurbishment work / Electrical conduit & lighting / Plumbing & Pipework / Shelving systems & many others.
Also included in the kit
The Fukuda FRE-205 DUO Kit also includes the following accessories:

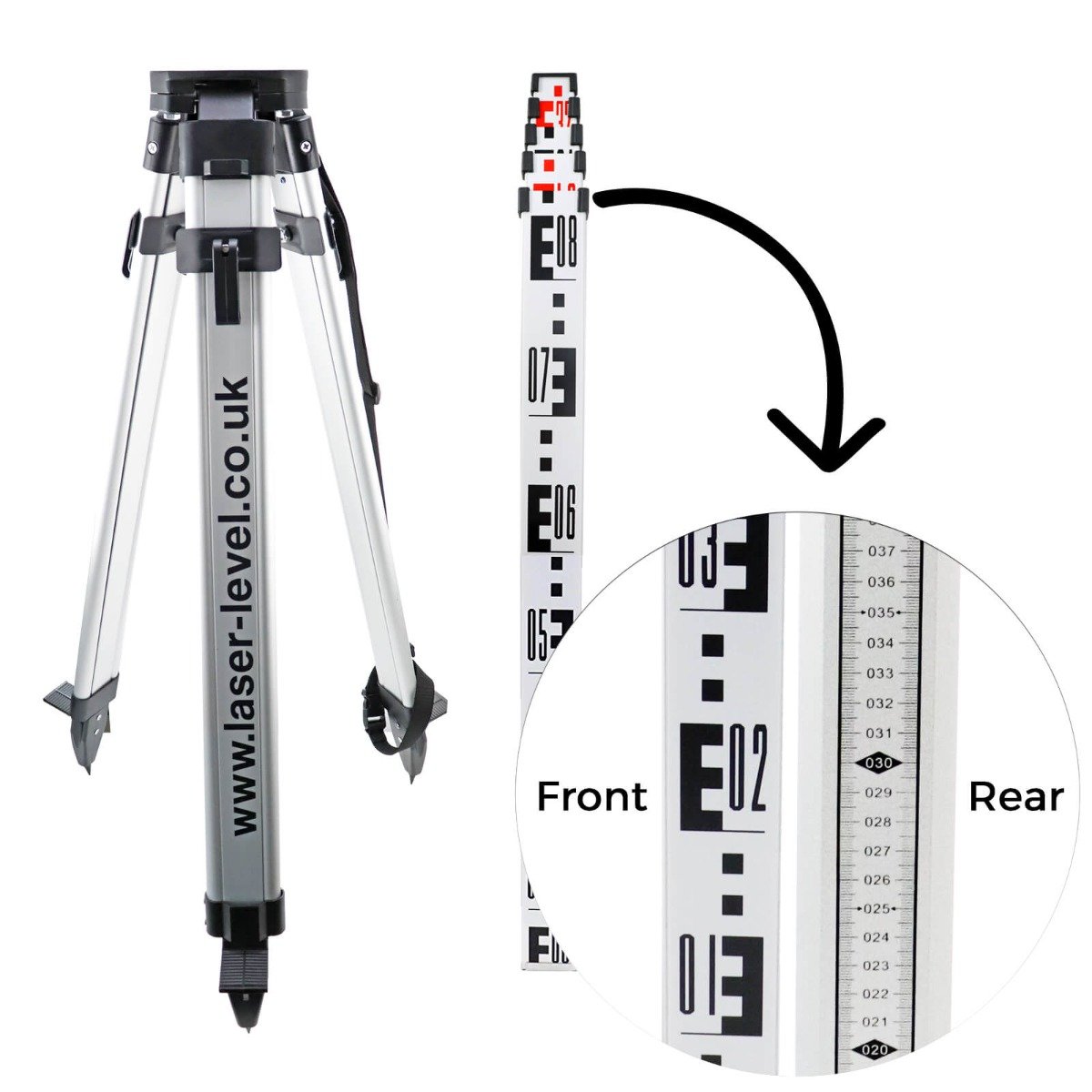

4m Telescopic Levelling Staff (Model: TLS4S)
4m, 5-section, Telescopic Levelling Staff.
Five robust aluminium sections with abrasion proof scale.
Closed length height 970mm, extending to maximum height of 4m.
Automatic locking buttons when extended.
Millimetre scale on back and E-graduations (1cm) markings on front
Rear mm scale (for use with laser levels) has ZERO mm marking at ground level.
Red / Black coded front sections.
Accepts all Laser detector mounting brackets.
Removable, rear-mounted circular Bubble Level.
Carry sleeve.
Height: 0.97m closed length to extended max 4m.
Weight 1.15kg.
Surveying Tripod (Model: S-LAT)
Maximum 1.5m height.
Robust aluminium tripod.
Extending legs with quick-release, toggle clamp adjustment.
Flat top, mounting head.
Head size 130mm
5/8 inch x 11 thread.
Closed length 0.925m
Max. Opened height 1.5m approx.
Weight: 3.4kg
Carry strap

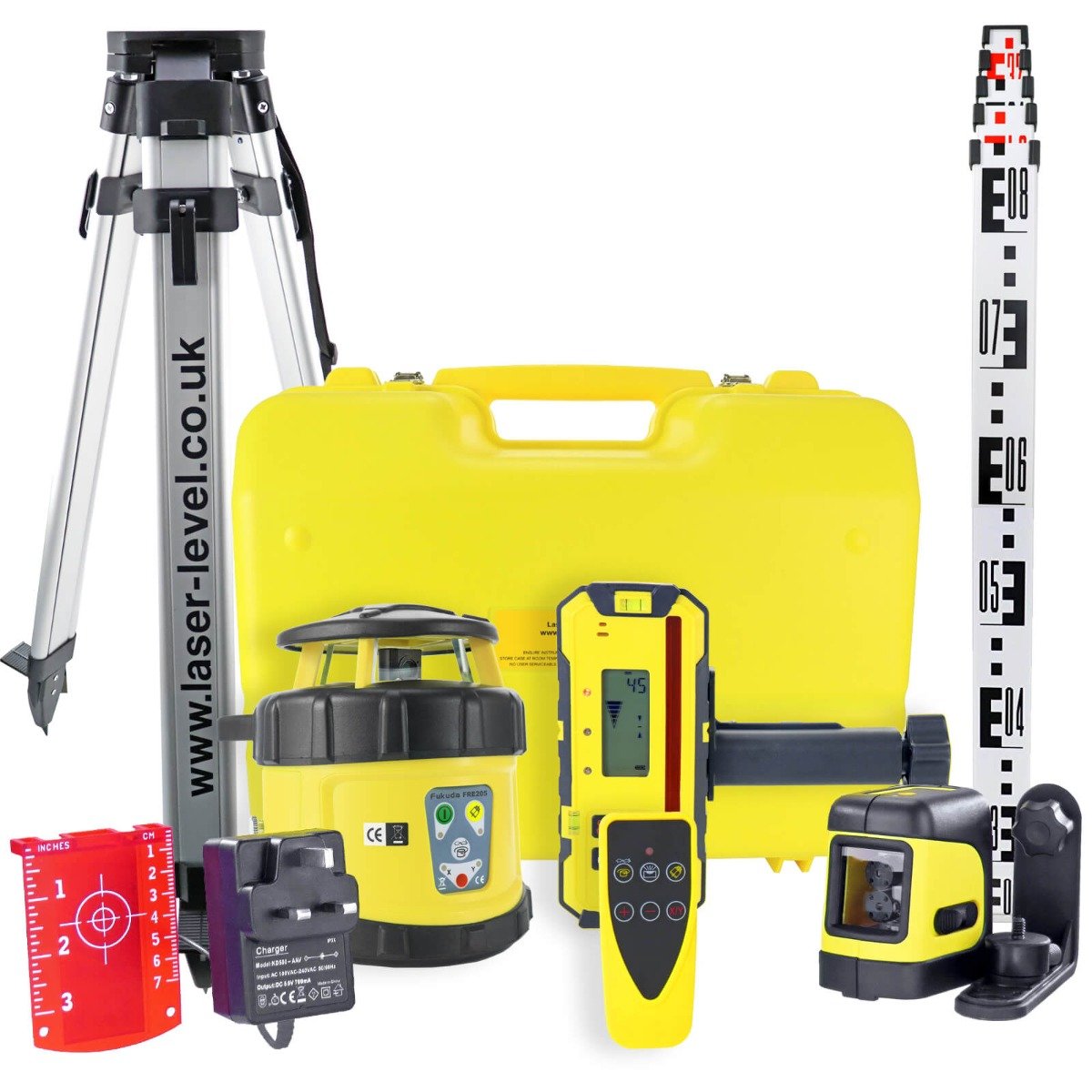

Kit comprises of
3ʳᵈ Generation Fukuda FRE-205 Rotary Laser Level (checked and pre-calibrated)
Fukuda FRD800R Laser Detector with Digital Readout (mm / inch)
Fukuda RC205 Remote Control (for FRE-205)
Fukuda EK-112R Cross Line Laser (checked and pre-calibrated)
L-shaped Magnetic Wall Bracket (for EK-112R)
4 x AA Rechargeable Batteries (for FRE-205)
2 x AA Alkaline Batteries (for EK-112R)
UK Mains Battery Charger
Red Magnetic Target Plate
Surveying Tripod
4m Measuring Staff, type TLS4S
Paper Calibration Certificate
Foam Lined Carry Case
Quick Start Guide
Payment & Delivery
GPS Tracking Device Installed
Free Delivery
Note: This Hire service is currently only available to customers in England, Wales & the Scottish Lowlands. It is not available in the Scottish Highlands & Islands, Northern Ireland, Isle Of Wight, Isle Of Man, Republic of Ireland, Jersey, Guernsey, Alderney or Sark.
England, Wales & Scottish Lowlands
Next Working Day
FREE
No minimum spend
Delivery by DPD is available on all Hire products in England, Wales & the Scottish Lowlands, if the order is placed by 3:45pm Monday to Friday.
GPS tracked to your Door & 1-Hour delivery window.
Scottish Highlands & Islands
NOT AVAILABLE
NOT AVAILABLE
Isle Of Wight & Isle Of Man
NOT AVAILABLE
NOT AVAILABLE
Northern Ireland
NOT AVAILABLE
NOT AVAILABLE
Channel Islands (0% UK VAT)
NOT AVAILABLE
NOT AVAILABLE
Return Collection
When you have finished with the Laser Level kit, or the rental period is nearing the end, please follow the steps below.
(Recommended Option)
Or
If you would like to extend the rental period please let us know and we will be happy to assist.
Or if you have finished with the kit, please provide us with a full address (including postcode) where DPD can collect the kit from.
DPD are only able to collect Monday - Friday, 8am - 5pm. Collections are not possible on Saturday or Sunday or on Public Holidays.
Prepare the Hired products for Return
For Hired Laser Levels, ensure all of the Laser Level Kit contents are placed back in the carry case. A list of the original Kit contents is shown in the kit contents laminated sheet.
For Hired Laser Detectors or Accessories, ensure all items are placed back in the box. A list of the original contents is shown in the kit contents laminated sheet.
Missing items will be subject to charges.
All hired items must be returned in the original outer cardboard boxes ready to be returned.
DPD Collection
DPD will email & text you a 1-Hour collection window on the day of collection.
Prior to Collection, please affix the DPD Return Labels (which can be found inside the cardboard box) to the outside of the box or boxes.
Please ensure there is access to the property (gates are not closed etc...)
The drivers are usually very quick, so please keep a lookout for the driver during this time so that the collection is not missed.
When the driver arrives hand the box or boxes over for inspection. You or someone else must be present to hand over the boxes.
The Kit will then be returned back to us.
