Product Overview
Requires RED beam Rotary Laser - Not Included.

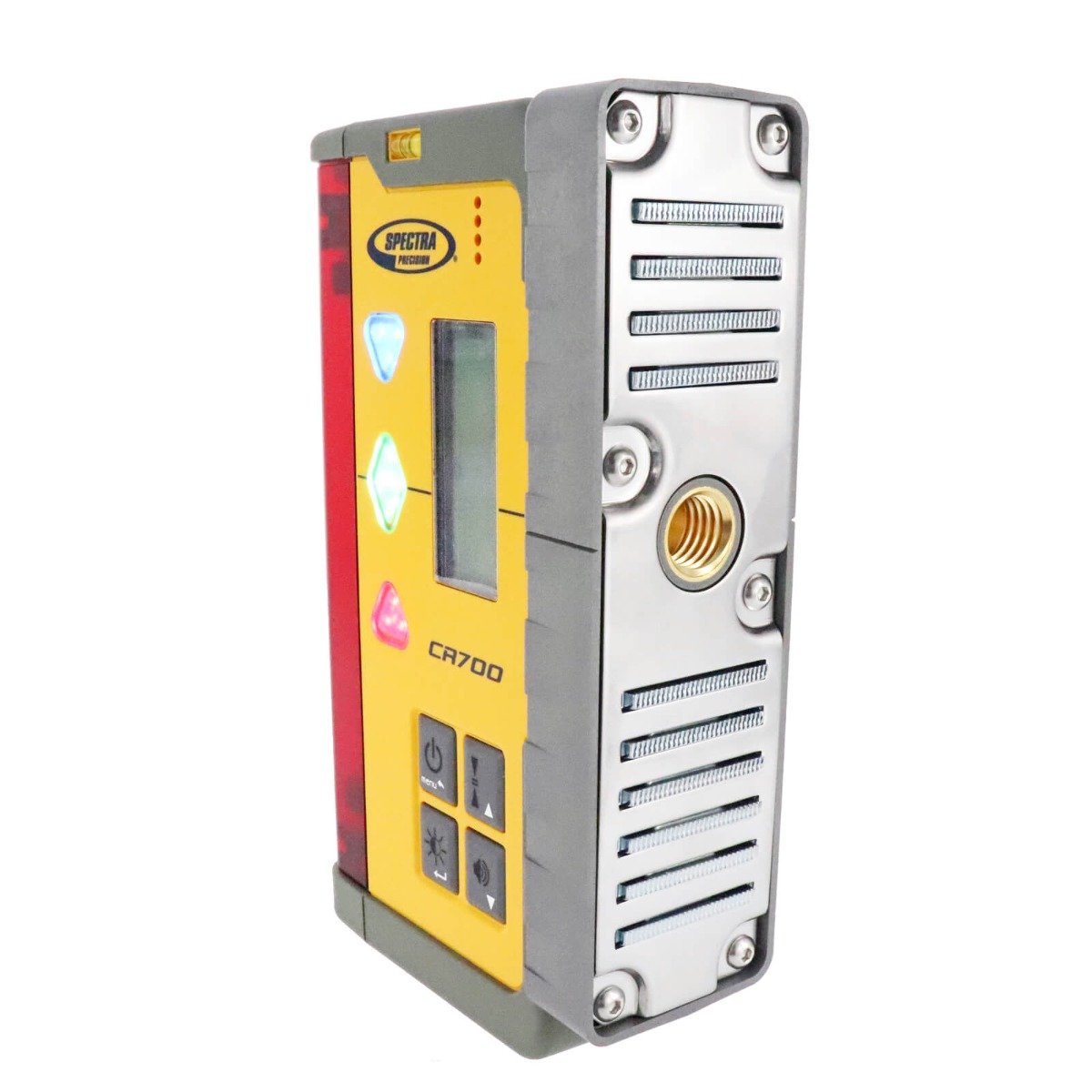

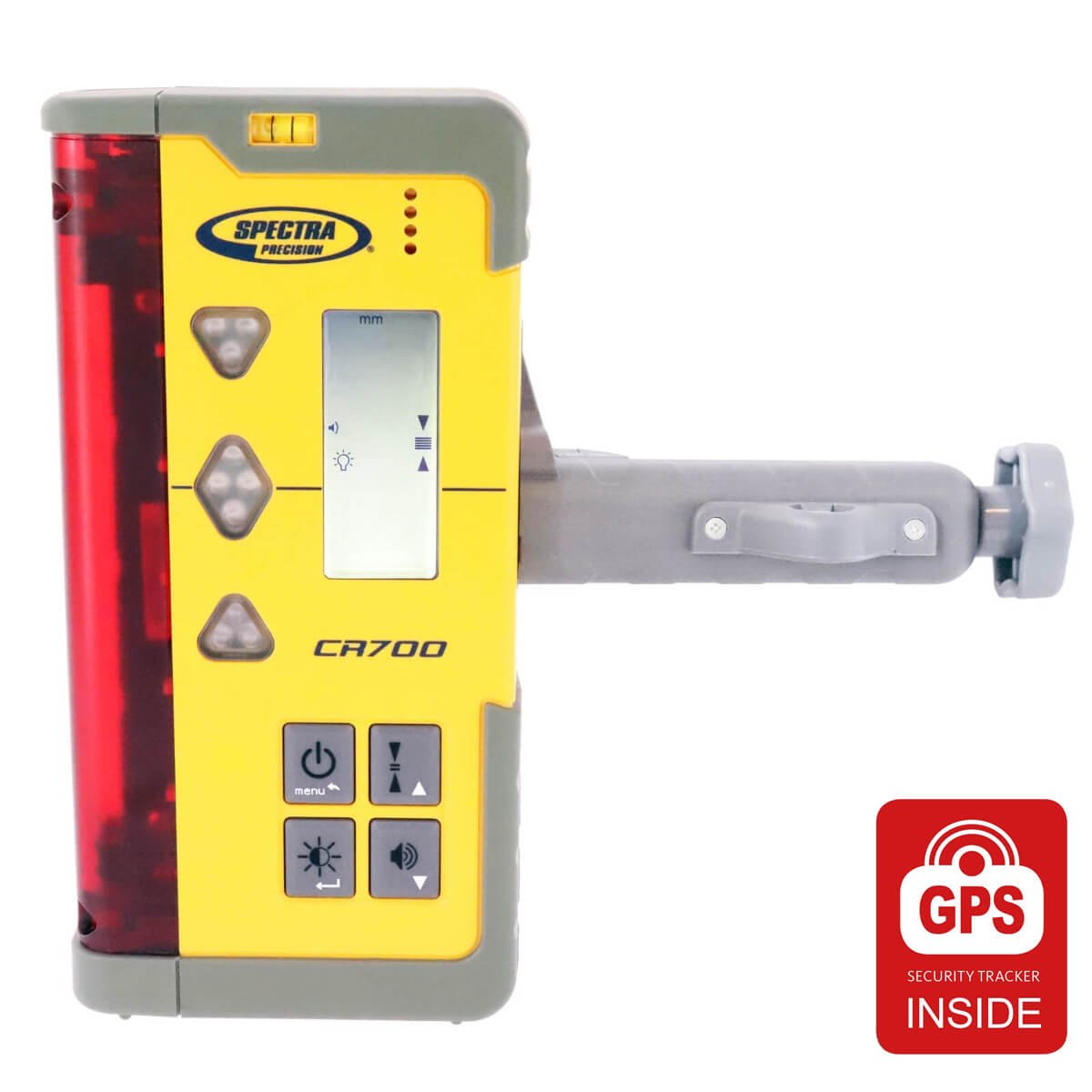

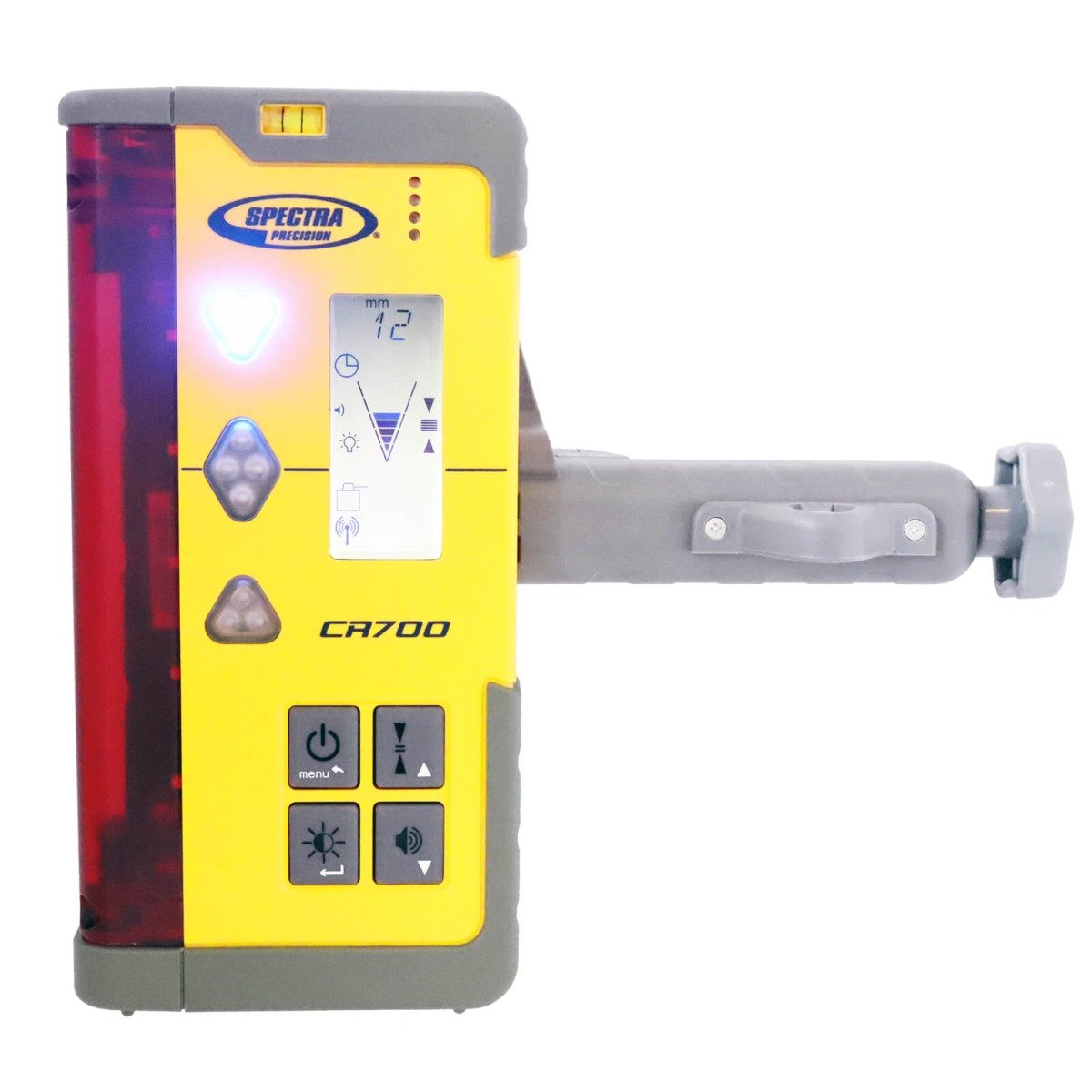

The Spectra Precision® CR700 combination Detector is both Machine and Measuring Staff mountable.
It is designed to be used with any Red Beam Rotary Laser Level (Fukuda, Topcon, Spectra etc...) and on 1T up to around 12-13T Excavators. Depending on your budget and usage, the CR700 can easily be used on larger plant, but is mainly intended for smaller machines up to 12T. Over this weight, there are compromises.
Using the same “light bar” technology that is included in the popular HL series of Spectra detectors and will deliver extremely accurate and more consistent results.

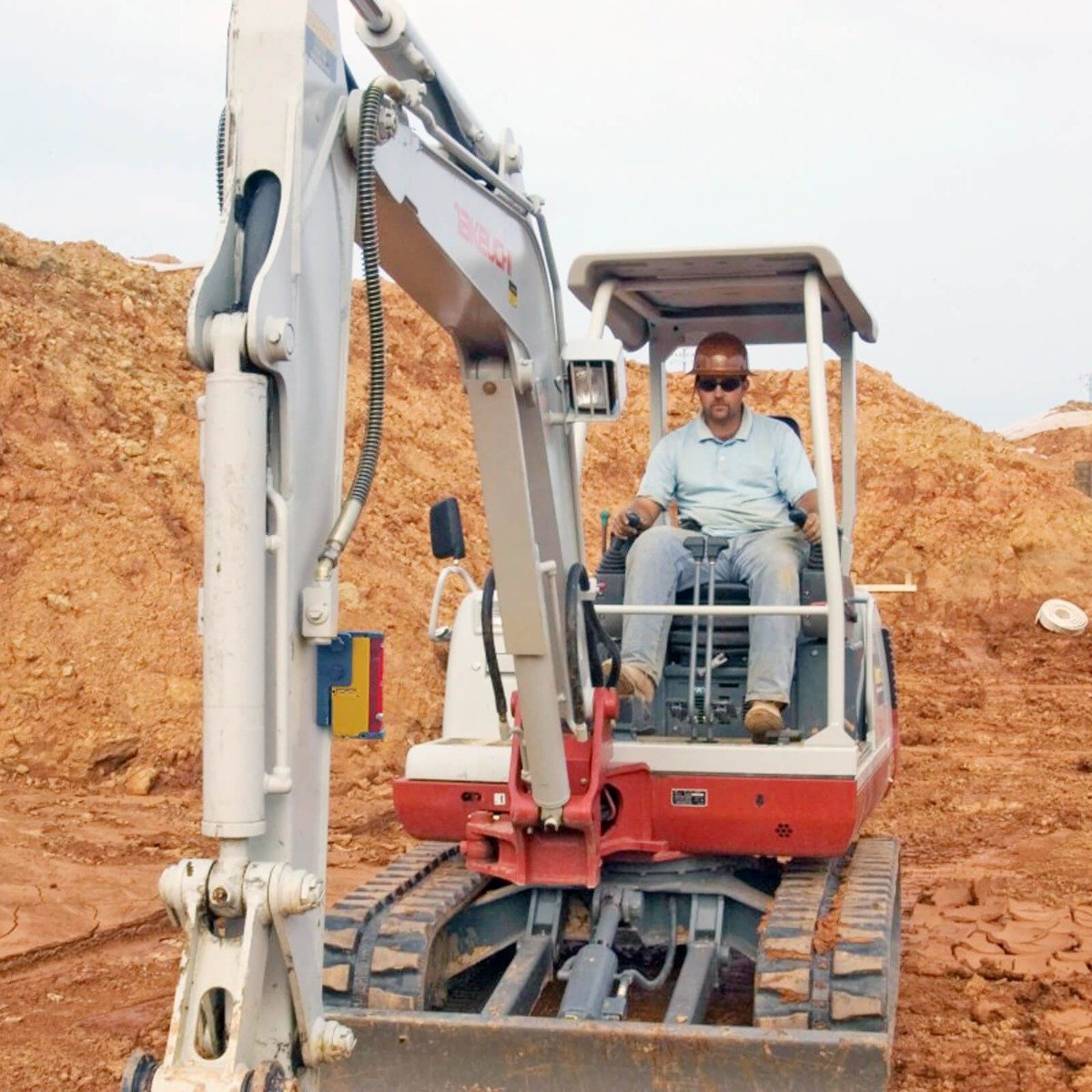

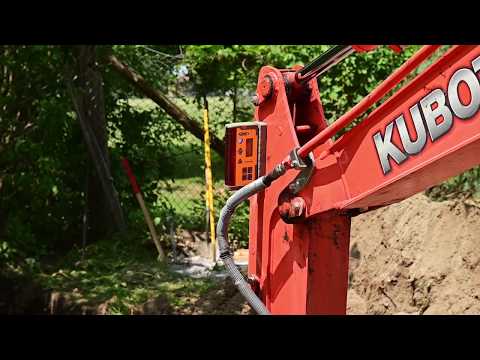

The CR700 attaches to machines with the included new magnetic mount, which is 25% stronger than its predecessor (the CR600 magnetic mount), resulting in stable machine mounting and a reduction in errors. With super bright directional LEDs, the CR700 is ideal for entry-level machine grade display, specifically on mini-excavators and backhoes. This provides instant grade information to the operator and eliminates the need for a rod man in the trench.

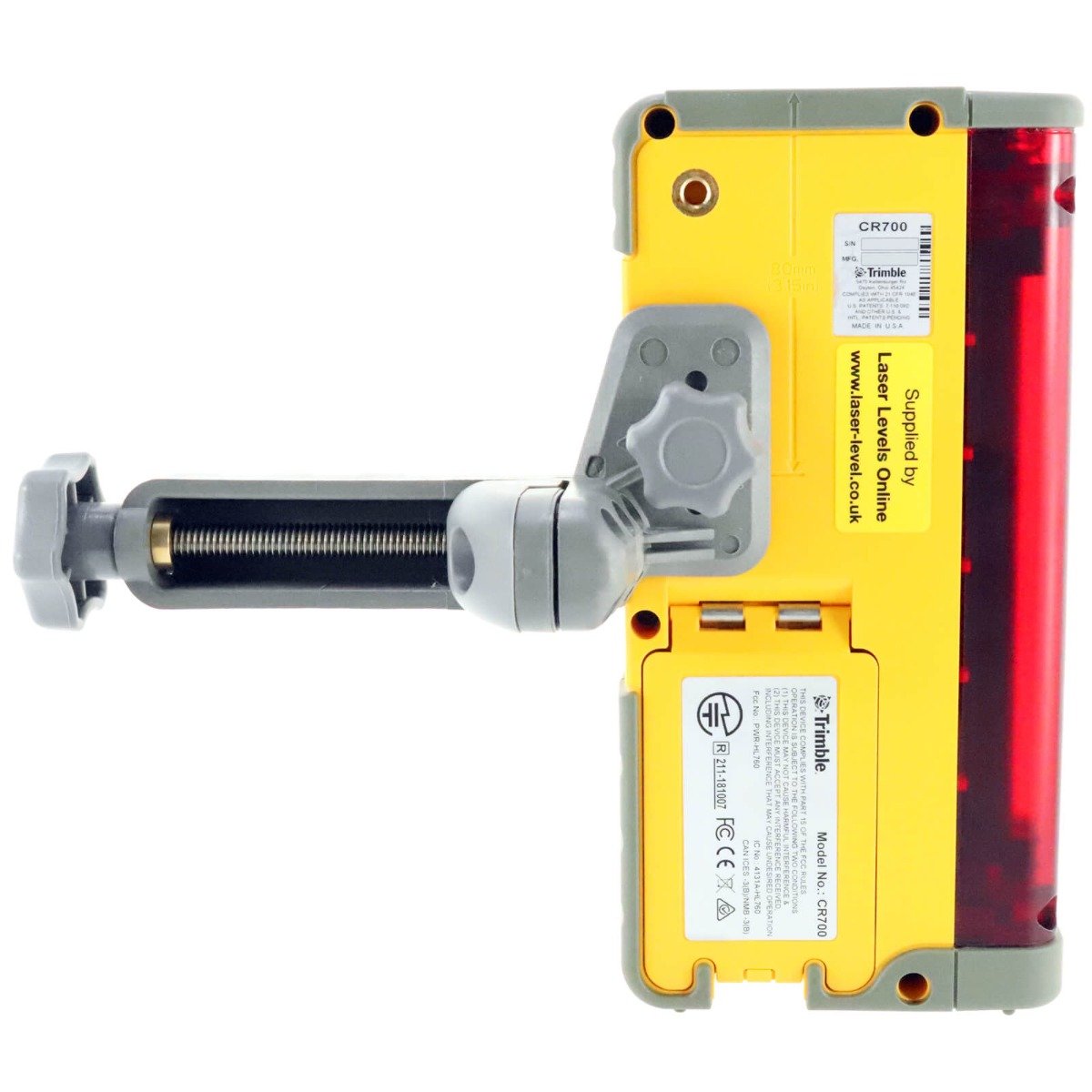

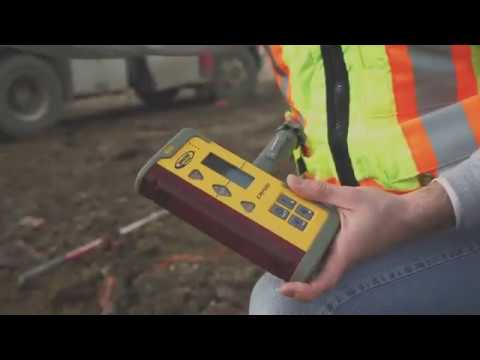

The kit also includes a mounting bracket to attach it to measuring staffs.
For any application, the industry-leading 3 metre (10 ft) drop guarantee, confirm that the CR700 is the most reliable and robust laser detector available.
The World’s Best Laser Detectors
Spectra Precision digital readout detectors are simply the best laser receivers – without peers in accuracy, performance, reliability and warranty. The patented “light bar” technology provides more accurate and more consistent readings than traditional methods. This unique technology has fewer electronic components resulting in the most rugged and reliable laser detectors available on the market today.
Features
Bright LED Arrow Displays – turn your head when you first turn on the CR700 because the new red/green/blue LED arrows are super bright and visible in all lighting conditions.

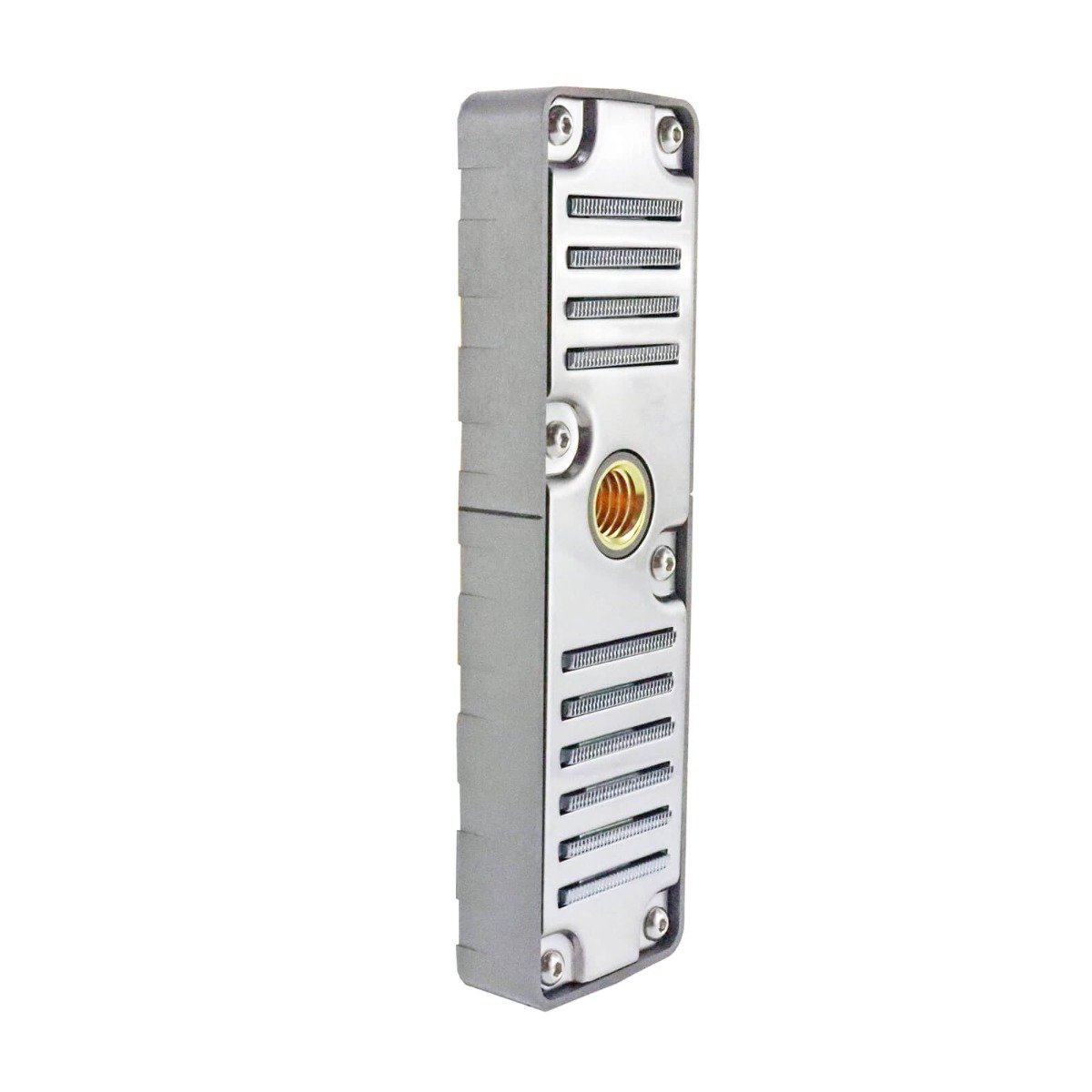

Magnetic Clamp – the new SMB781 magnetic clamp is 25% stronger than the CR600 magnetic clamp. It will not slip on the machine, no matter how rough the work is.
Light Bar Technology – patented laser reception technology delivers the most accurate, consistent and reliable performance.
Laser Radio Communication – the CR700 is radio-compatible with the GL400N / GL600N series grade lasers and the model HV302. This enables the use of time-saving functions such as Grade Match, Fingerprinting, PlanLok and Axis Alignment. Radio range is up to 200m depending on orientation, conditions and paired device.
IP67 – dustproof, waterproof, weatherproof.
3 metre (10ft) Drop Guarantee – almost destruction proof, extremely robust, eliminates downtime.
Digital Read-Out – the CR700 provides the exact distance from true level, numerically. It reads up to 70mm below true level and 30mm above.
Anti-strobe protection sensor. Eliminates false readings from green and amber flashing beacons via site plant and equipment.
Backlight – to enable the User to view the laser detector in the dark.
Vertical Drift Alarm – when using lasers in vertical mode, after setting up your line, let the laser detector warn you if the laser has been disturbed.
Specification
Working radius: 1m to 460m
Laser detection height (of pick-up window): 127mm
Numeric read-out height: total 102mm, 70mm below set-level & 30mm above.
Radio range, working radius: up to 200m, depending on orientation, conditions and paired device.
Accuracy (deadband): ultra fine 0.5mm, super fine 1.0mm, fine 2.0mm, medium 5.0mm, coarse 10.0mm or Machine 25.0mm
Reception angle: 200 degrees (laser & distance dependent).
Detectable spectrum: 610 to 780nM
Sounder volumes: Loud 110 dBA, Medium 95dBA or Low 65dBA (selectable).
Power supply: 3 x 1.5V type AA alkaline batteries.
Battery life: 60+ hrs; 16hrs continuous with backlight on.
Automatic shut-off: 30 minutes.
Protection rating: Dustproof and Waterproof to IP67
Weight: 500g
Shipping weight: 1.4kg
Dimensions: 99W x 198H x 33D mm
Summary of features
There is no competitive equivalent!
• Can be attached to backhoes and mini-excavators displacing the need for an extra rod man.
• Has super bright LEDs providing visual indication over long distances – ideal for vertical alignment applications.
• Can be attached to a measuring staff, the same as an HL700 and HL760U but with a larger reception angle, providing more flexibility.
• Can be used with Spectra Precision lasers that have advanced functions such as GradeMatch, Finger Printing and Axis Alignment.
• The most versatile laser detector on the market, offering unrivalled performance and advanced functionality.
Technical specification
The Spectra CR700 will operate with any RED beam Rotating laser level. It will not work with GREEN beam lasers. There are currently no magnetic machine detectors available for use with green beam rotating lasers.

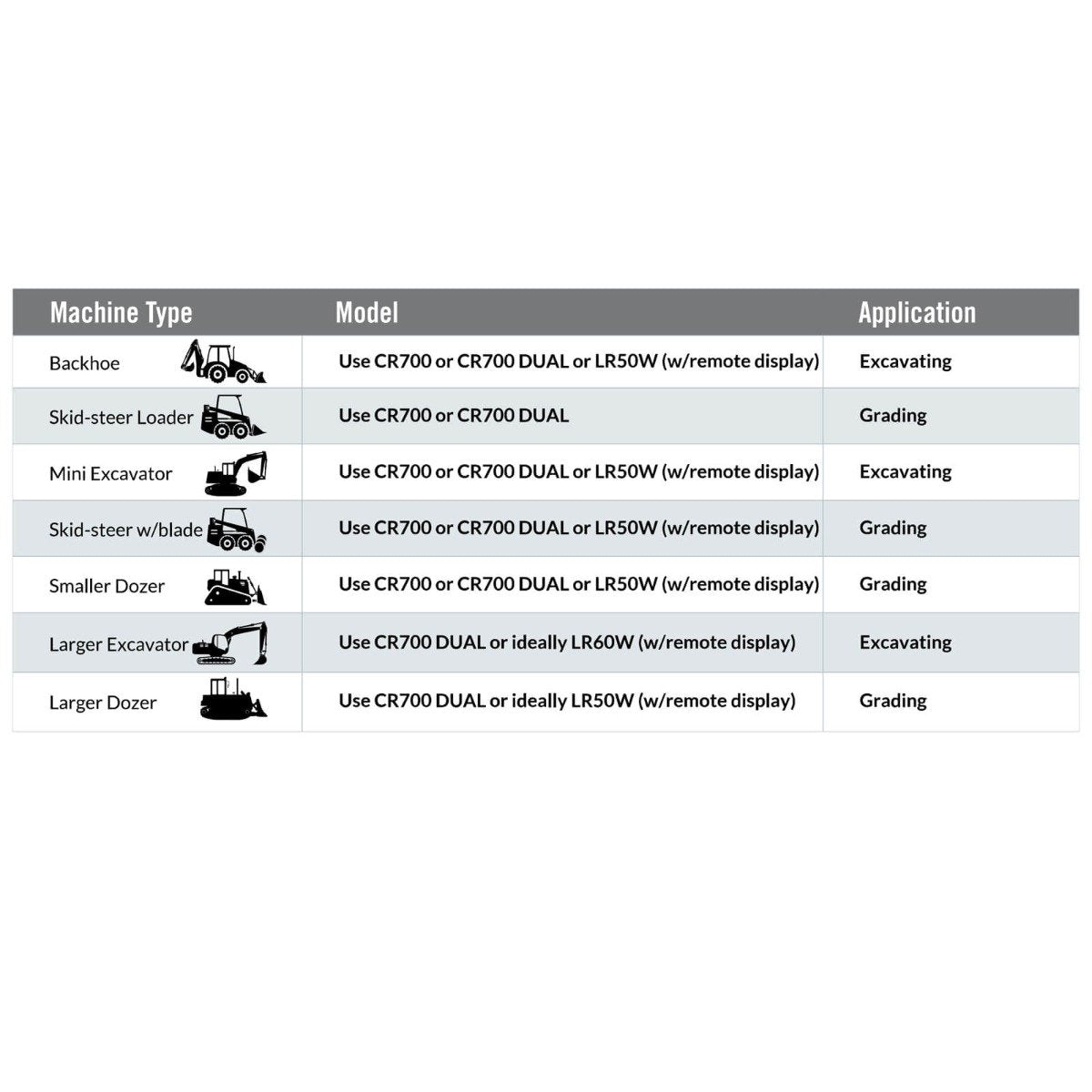

Example usage
Backhoes - for grading.
Skid-steer Loaders - for elevation display.
Mini Excavators - also for elevation display.
covering.........
Site Preparation
Building and Housing Pads
Sewage and Storm Drains
General Construction
etc
Comprises of
Spectra CR700 Detector
3 x AA Alkaline Batteries
Spectra SMB781 Strong Magnetic Machine Mount

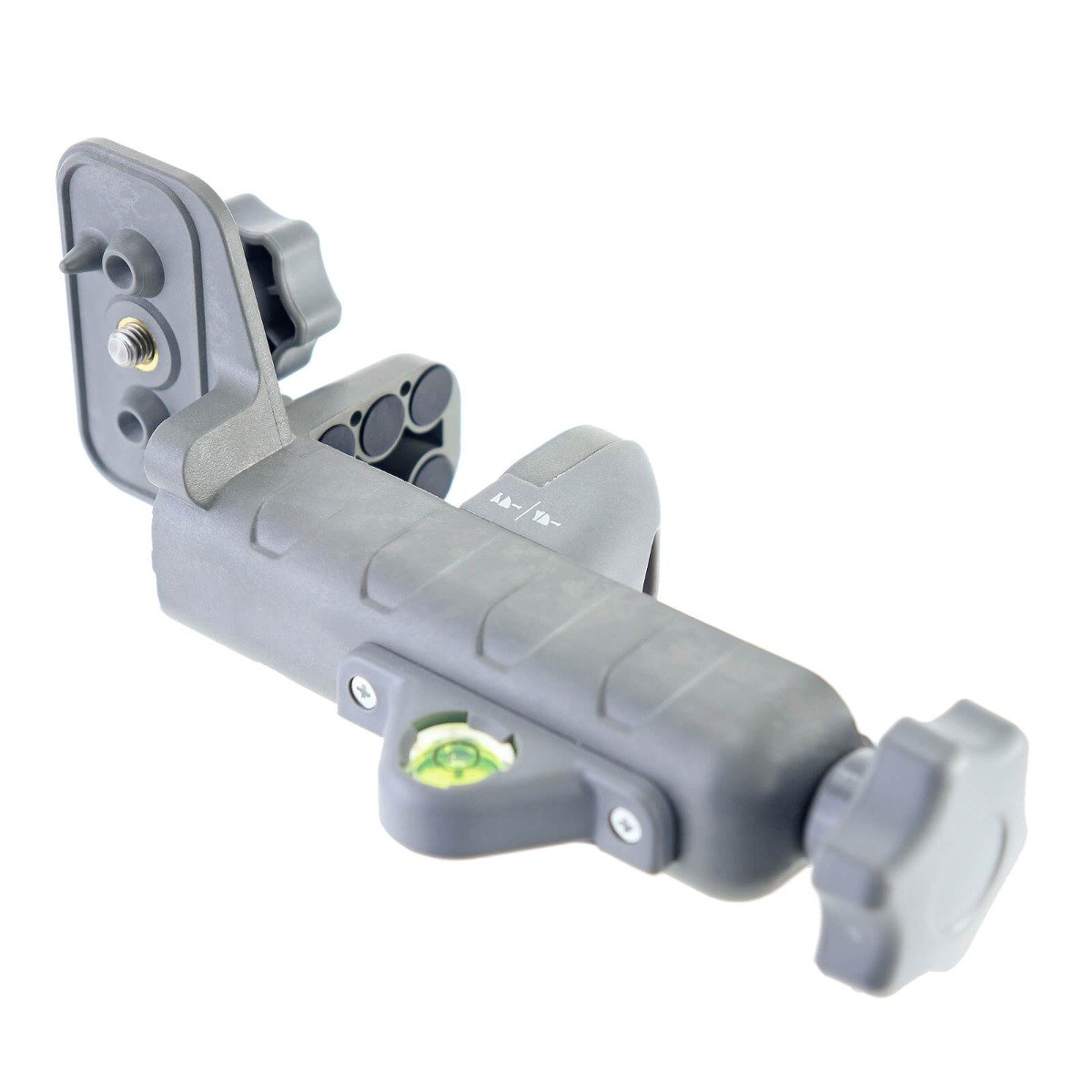

Spectra SMB780 Staff Mounting Bracket With Bubble Level
User Guide
Payment & Delivery
GPS Tracking Device Installed
Free Delivery
Note: This Hire service is currently only available to customers in England, Wales & the Scottish Lowlands. It is not available in the Scottish Highlands & Islands, Northern Ireland, Isle Of Wight, Isle Of Man, Republic of Ireland, Jersey, Guernsey, Alderney or Sark.
England, Wales & Scottish Lowlands
Next Working Day
FREE
No minimum spend
Delivery by DPD is available on all Hire products in England, Wales & the Scottish Lowlands, if the order is placed by 3:45pm Monday to Friday.
GPS tracked to your Door & 1-Hour delivery window.
Scottish Highlands & Islands
NOT AVAILABLE
NOT AVAILABLE
Isle Of Wight & Isle Of Man
NOT AVAILABLE
NOT AVAILABLE
Northern Ireland
NOT AVAILABLE
NOT AVAILABLE
Channel Islands (0% UK VAT)
NOT AVAILABLE
NOT AVAILABLE
Return Collection
When you have finished with the Laser Level kit, or the rental period is nearing the end, please follow the steps below.
(Recommended Option)
Or

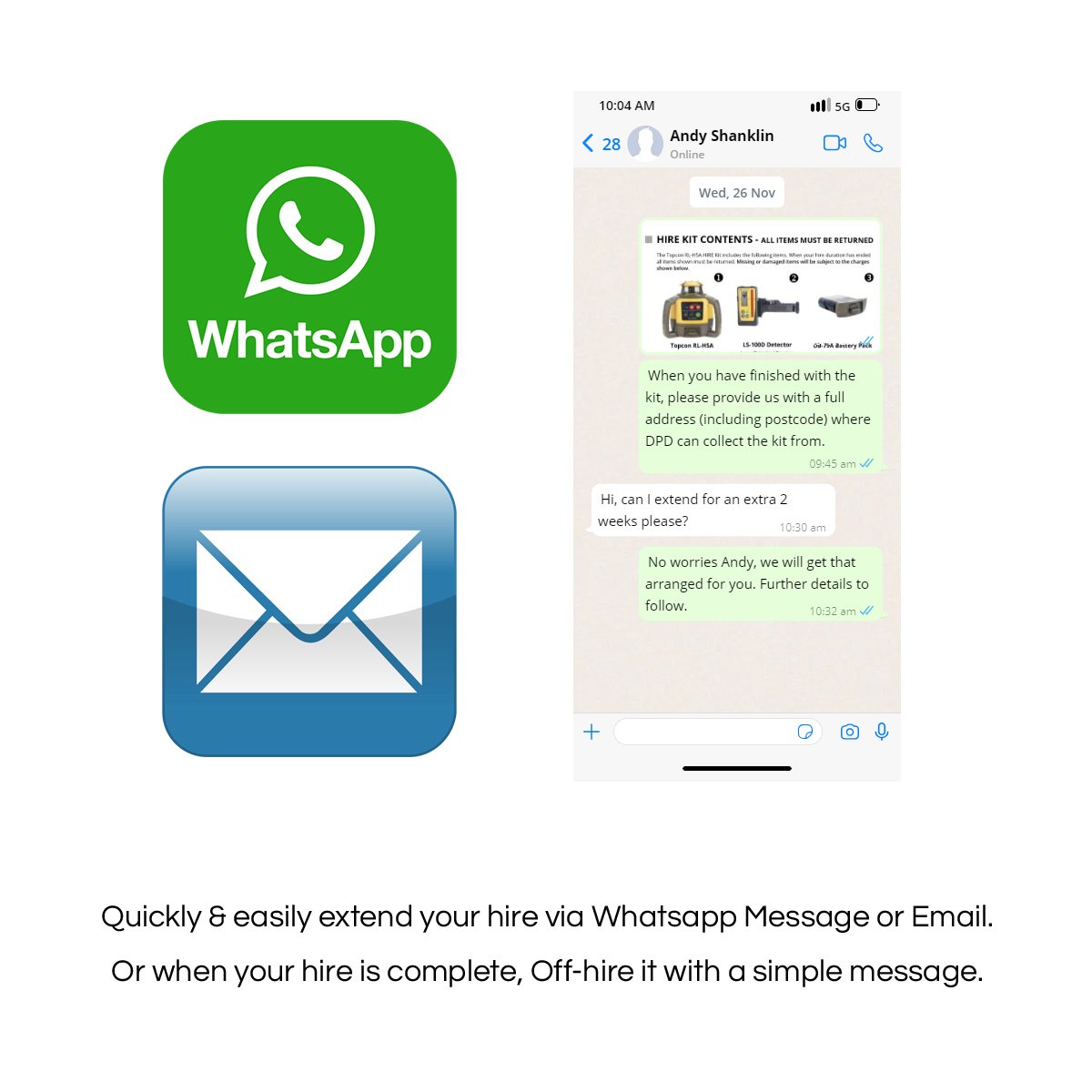

If you would like to extend the rental period please let us know and we will be happy to assist.
