Leica Rugby RE160 Rod Eye (mm/inch)
Only 1 product(s) are currently left in stock
Couldn't load pickup availability
Product Overview

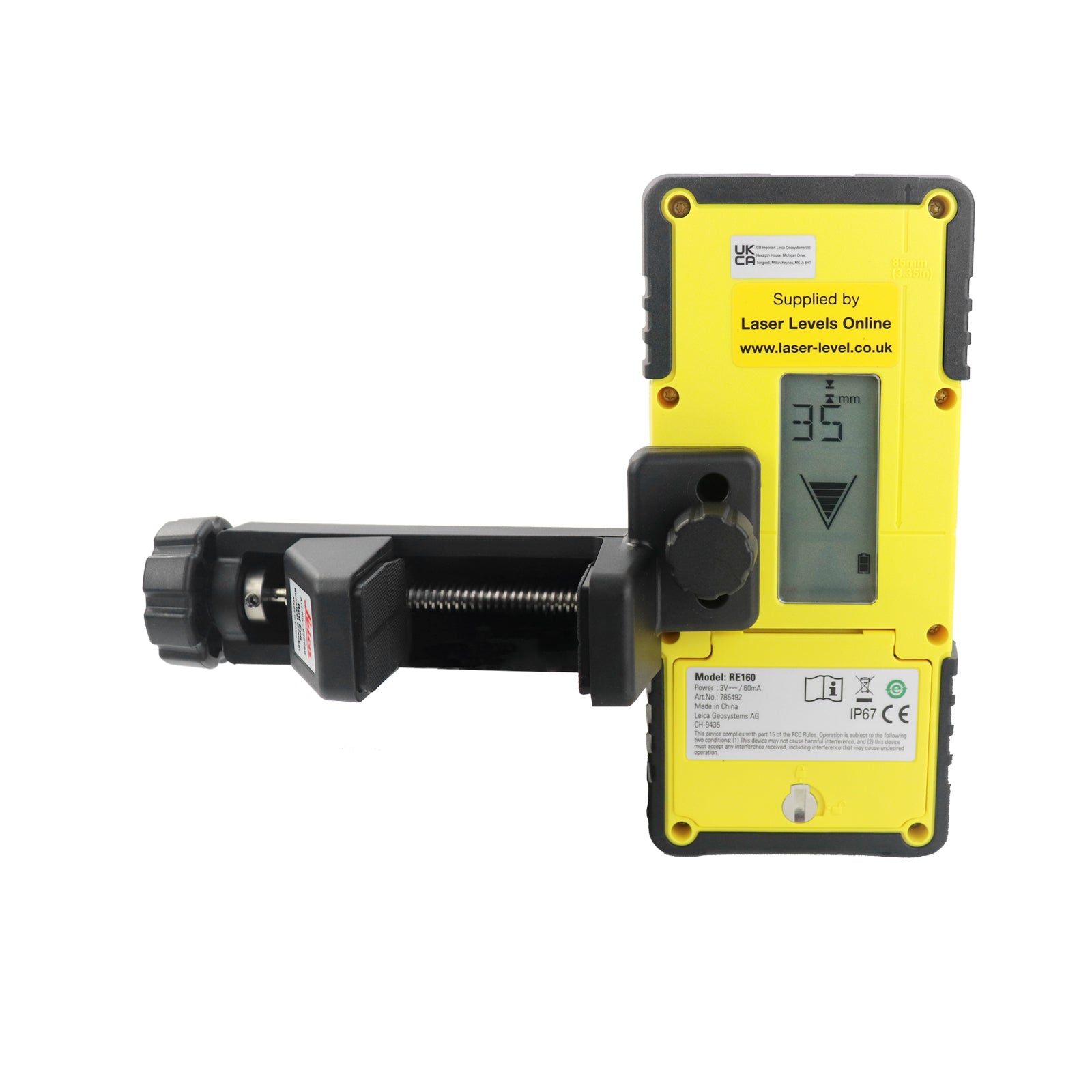

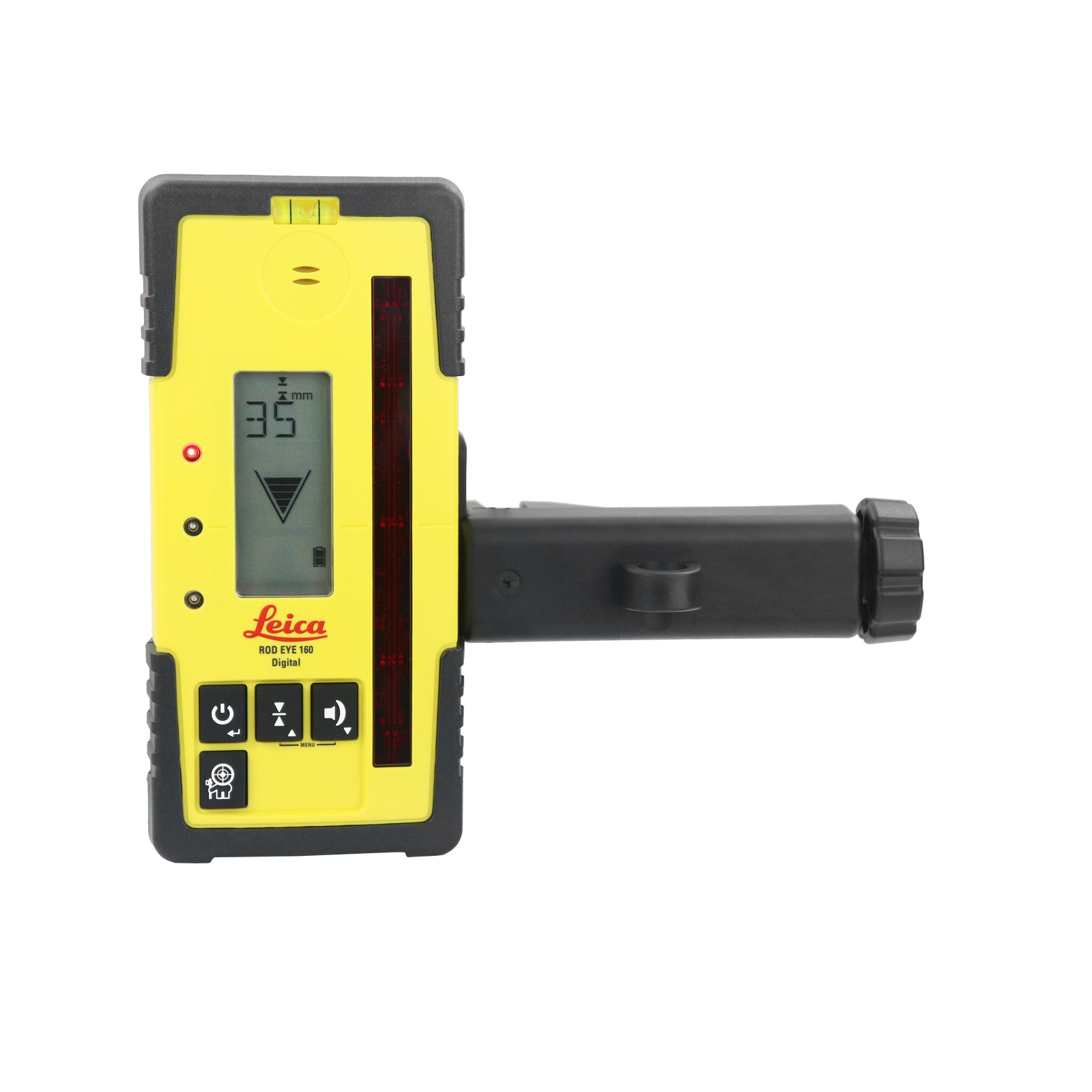

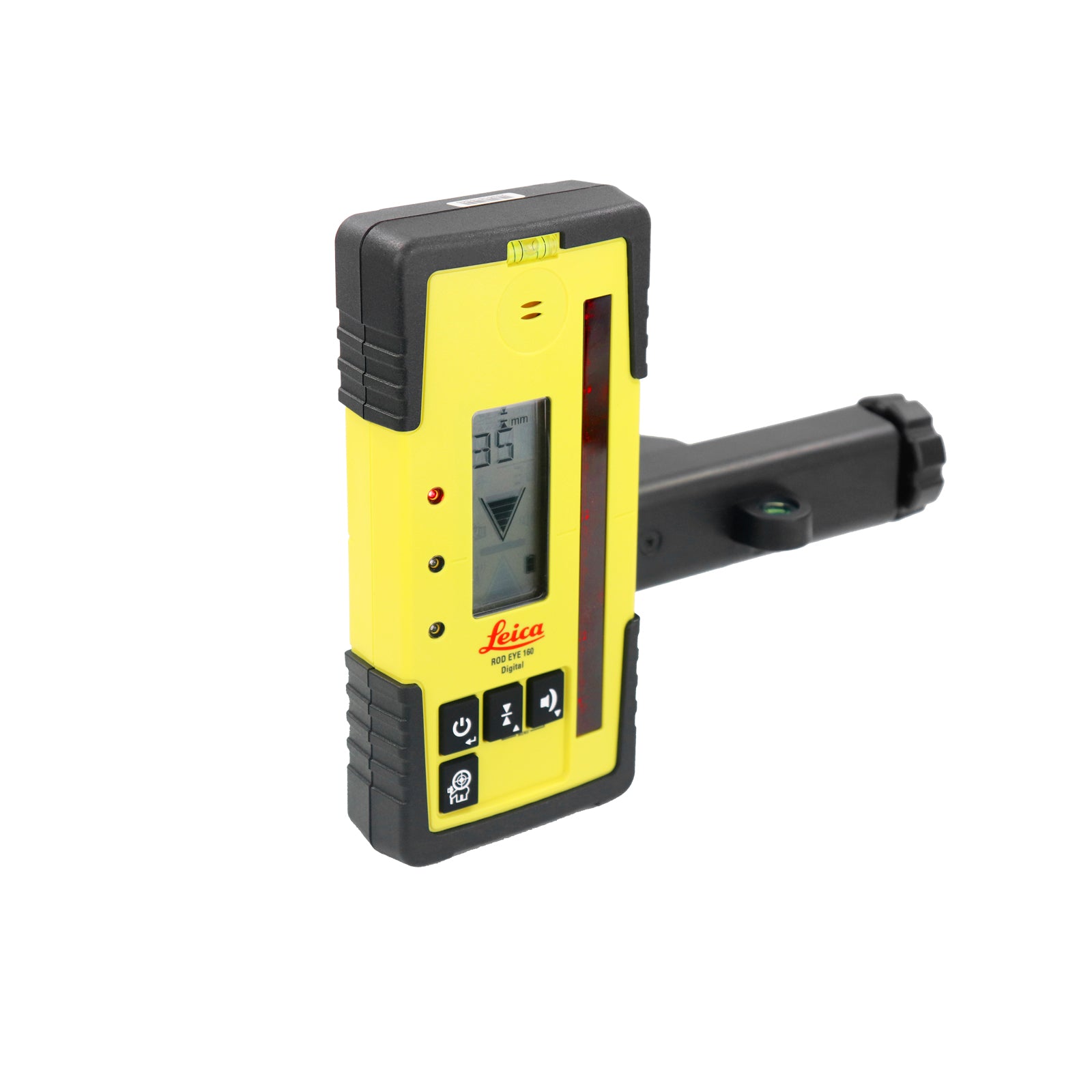

Leica Rugby RE160 Rotary Rod Eye / Detector with "mm / inch" Display
The Leica RE160 Detector is an easy-to-use tool that accurately measures elevations across the site and is ideal for use with any rotating, visible red beam laser level.
It features a digital readout of elevation that provides a numeric display of ±60mm to 0.5mm resolution. The readout is displayed on the large front and rear LCD's and shows exactly how far the elevation is from on-grade.
The User can select from five sensitivity settings from very fine (+/-0.5mm) to very coarse (+/-5mm) to suit all worksite conditions.
Accurate measurements can be made without moving the rod bracket, saving time and increasing productivity.
The RE160 has a 120mm (5 ins) reception height, double the typical industry standard, which allows quick acquisition of the laser beam.
The detector is designed to survive the toughest of construction site conditions. It is totally dust and waterproof with a high IP67 rating.
Features
Digital Readout of Elevation allows faster readings by displaying the exact numerical distance from grade, eliminating the need to move the detector to get to "on-grade".
Large reception height allows faster readings by acquiring the beam quickly and makes it easier to stay in the beam.
Selectable reading units: mm / cm / ft / inch & fractions.
Three quick read bright LED’s and variable audible sounder.
Very durable in tough environments provides less downtime due to damage or service requirements after accidental drops.
Example usage
Setting and checking jobsite elevation and depth for:
Cut and fills
General grading
Foundations, forms, and footings
Excavations etc
Comprises of
Leica Rugby RE160 (mm/inch) Detector
2 x type “AA” Alkaline Batteries
Leica 835666 Rod Eye Mounting Bracket with bubble level
Instruction & Safety Manual
Warranty: 1 Year
