Topcon LS-110D Detector
Only 6 product(s) are currently left in stock
Couldn't load pickup availability
Product Overview

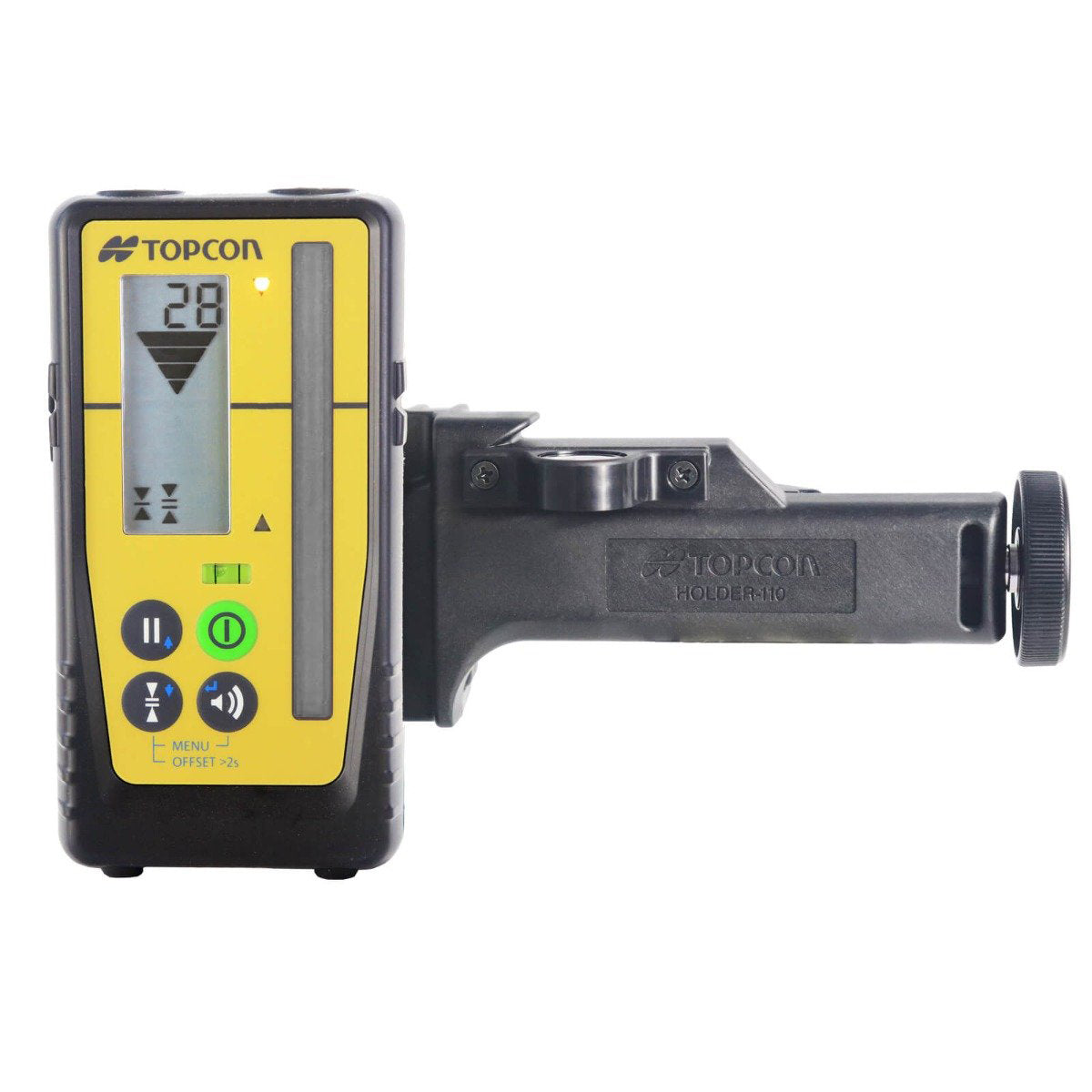

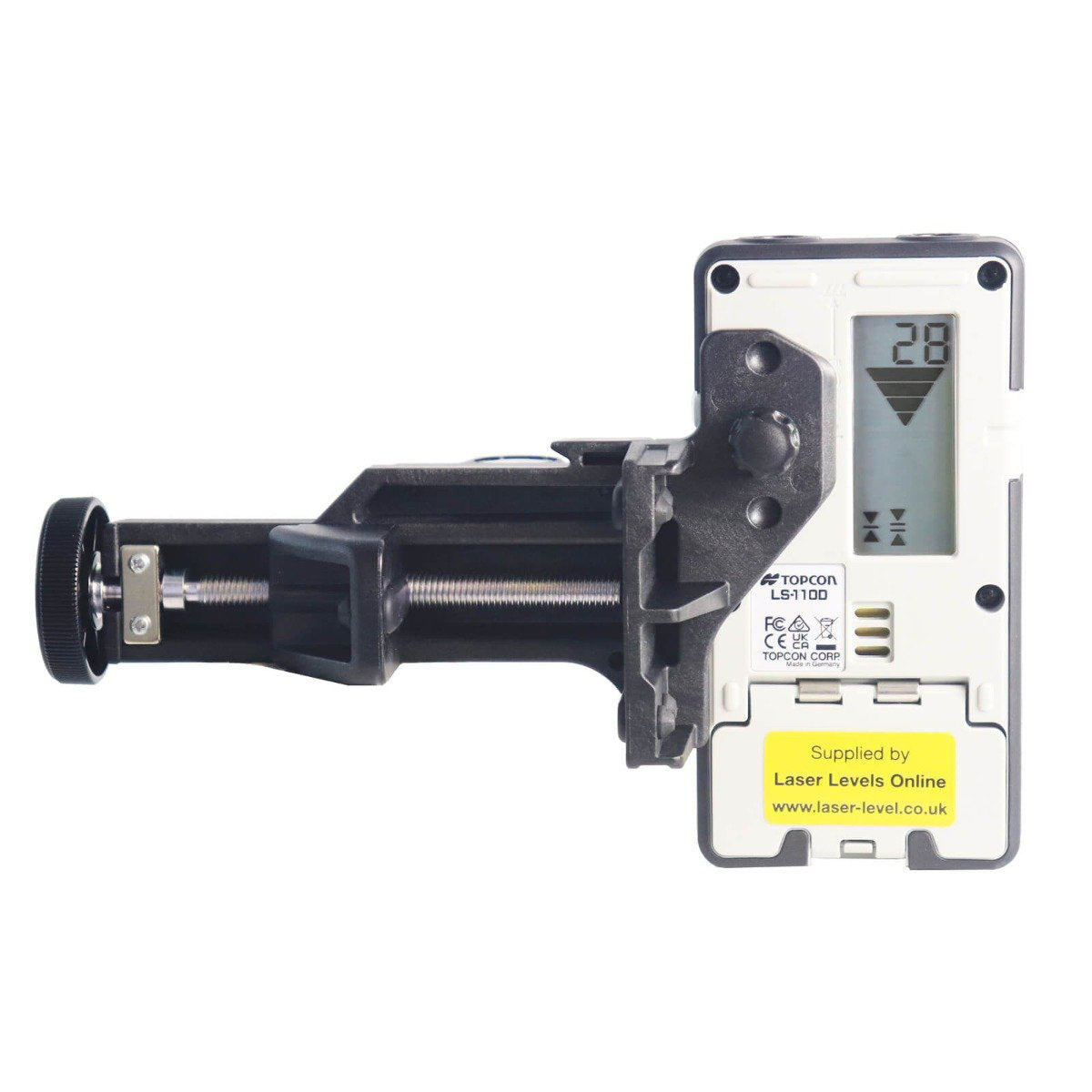

Topcon LS-110D Rotary Laser Detector with "mm / inch" Display
Replaces the outgoing Topcon LS-100D which could just pickup red beam Lasers.
Versatile and designed for maximum User convenience, the LS-110D laser detector features a digital read-out to confidently deliver elevation and vertical alignment control on demand.
It features an extra-wide beam capture sensor that also rejects annoying interference from strobe light exposures. The large and bright LCD displays (both front and rear) feature 9-channels of grade information and digitally show the distance to on-grade. By pressing the Hold button, the display is locked so the user can conveniently read the results. For added versatility, three coloured LED’s and a strong magnet mount are embedded for vertical operation, ideal for steel erection or operator grade checking while excavating.
To assist in monitoring the Topcon rotating laser, alert icons appear on the LCD if the instrument is disturbed (HI alert) or when the laser battery is low.
The LS-110D is compact and lightweight. At 135 x 69 x 25mm and approx. 200g with battery; it won’t slow your team down. One standard type AA alkaline battery powers it for up to 65 hours, so you’re not stopping to find & swap batteries mid-shift.
Example usage
Setting and checking jobsite elevation and depth for:
Cut and fills
General grading
Foundations, forms, and footings
Excavations
Drainage
Specification
Laser beam colour detected – Red & Green
Working Range (diameter): 800m
Vertical Detecting Range: 90mm; (-30mm to +60mm)
LCD Digital Readout Range: 80mm; (-25mm to +55mm)
Strobe Light Suppression: Yes
Unit: mm / cm / inch / fractional inch
On-Grade Resolution:
Ultra Fine ±0.5mm (±0.02 in.)
Super Fine ±1.0mm (±0.05 in.)
Fine ±2.0mm (±0.10 in.)
Medium ±5.0mm (±0.20 in.)
Coarse ±10.0mm (±0.50 in.)
LCD Grade Indicators: 9 Channels
LED Grade Indicators: Orange, Green, Red (On/Off selectable)
Display LCD on both sides
Buzzer: Loud / Low / Off selectable
Operating Time: Up to 65 hours with one alkaline “AA” battery
Battery Level Indicator: LCD Icon
Auto Shut-off approx: 30 minutes
Dust/Waterproof Rating: IP67 (IEC 60529)
Dimensions: 135 x 69 x 25mm
Weight: 200g with fitted battery (380g with bracket)
Comprises of
Topcon LS-110D Detector
1 x type “AA” Alkaline Battery
Staff Mounting Bracket (Topcon Holder 110)
Instruction & Safety Manual
Warranty: 1 year
